Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: OptionsEvents.model
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-business-events-5-8.xsd
Documentation:
Choice between options related events, including the extension point additional event.

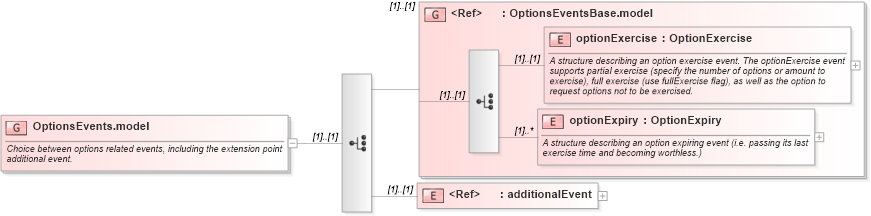

Collapse XSD Schema Diagram:
Drilldown into additionalEvent in schema fpml-business-events-5-8_xsd Drilldown into optionExpiry in schema fpml-business-events-5-8_xsd Drilldown into optionExercise in schema fpml-business-events-5-8_xsd Drilldown into OptionsEventsBase.model in schema fpml-business-events-5-8_xsdXSD Diagram of OptionsEvents.model in schema fpml-business-events-5-8_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="OptionsEvents.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Choice between options related events, including the extension point additional event.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="OptionsEventsBase.model" />
        <xsd:element ref="additionalEvent" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
optionExercise nsA:optionExercise (1) (1)
optionExpiry nsA:optionExpiry (1) unbounded
additionalEvent nsA:additionalEvent (1) (1)
<xs:group> nsA:OptionsEventsBase.model (1) (1)
