Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PackageHeader
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-business-events-5-8.xsd
Abstract
Documentation:
Identifying information for a tradePackage (a bundle of trades).

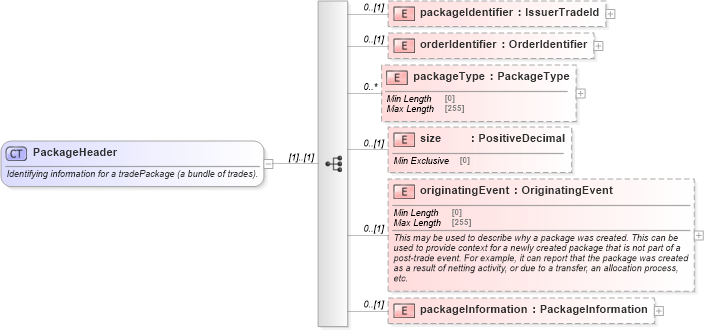

Collapse XSD Schema Diagram:
Drilldown into packageInformation in schema fpml-business-events-5-8_xsd3 Drilldown into originatingEvent in schema fpml-business-events-5-8_xsd3 Drilldown into size in schema fpml-business-events-5-8_xsd3 Drilldown into packageType in schema fpml-business-events-5-8_xsd3 Drilldown into orderIdentifier in schema fpml-business-events-5-8_xsd3 Drilldown into packageIdentifier in schema fpml-business-events-5-8_xsd3XSD Diagram of PackageHeader in schema fpml-business-events-5-8_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PackageHeader">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifying information for a tradePackage (a bundle of trades).</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="packageIdentifier" type="IssuerTradeId" minOccurs="0" />
        <xsd:element name="orderIdentifier" type="OrderIdentifier" minOccurs="0" />
        <xsd:element name="packageType" type="PackageType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="size" type="PositiveDecimal" minOccurs="0" />
        <xsd:element name="originatingEvent" type="OriginatingEvent" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">This may be used to describe why a package was created. This can be used to provide context for a newly created package that is not part of a post-trade event. For example, it can report that the package was created as a result of netting activity, or due to a transfer, an allocation process, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="packageInformation" type="PackageInformation" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
packageIdentifier nsE:packageIdentifier 0 (1)
orderIdentifier nsE:orderIdentifier 0 (1)
packageType nsE:packageType 0 unbounded
size nsE:size 0 (1)
originatingEvent nsE:originatingEvent 0 (1)
packageInformation nsE:packageInformation 0 (1)
Collapse Derivation Tree:
Collapse References:
nsE:packageHeader
