Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Product
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-8.xsd
Abstract True
Documentation:
The base type which all FpML products extend.

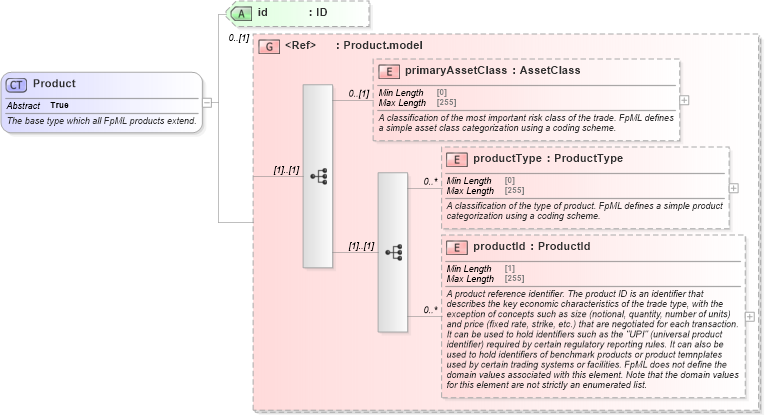

Collapse XSD Schema Diagram:
Drilldown into productId in schema fpml-shared-5-8_xsd2 Drilldown into productType in schema fpml-shared-5-8_xsd2 Drilldown into primaryAssetClass in schema fpml-shared-5-8_xsd2 Drilldown into Product.model in schema fpml-shared-5-8_xsd2 Drilldown into id in schema fpml-shared-5-8_xsd2XSD Diagram of Product in schema fpml-shared-5-8_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Product" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The base type which all FpML products extend.</xsd:documentation>
    </xsd:annotation>
    <xsd:group ref="Product.model" minOccurs="0" />
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsC:primaryAssetClass 0 (1)
productType nsC:productType 0 unbounded
productId nsC:productId 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:CreditDefaultSwap, nsC:FxSingleLeg, nsC:productnsC:Strategy, nsC:Swap,
