Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RepoNearLeg
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:RepoLegBase
Containing Schema: fpml-repo-5-8.xsd
Abstract
Documentation:
A transaction leg for a repo is equivalent to a single cash transaction.

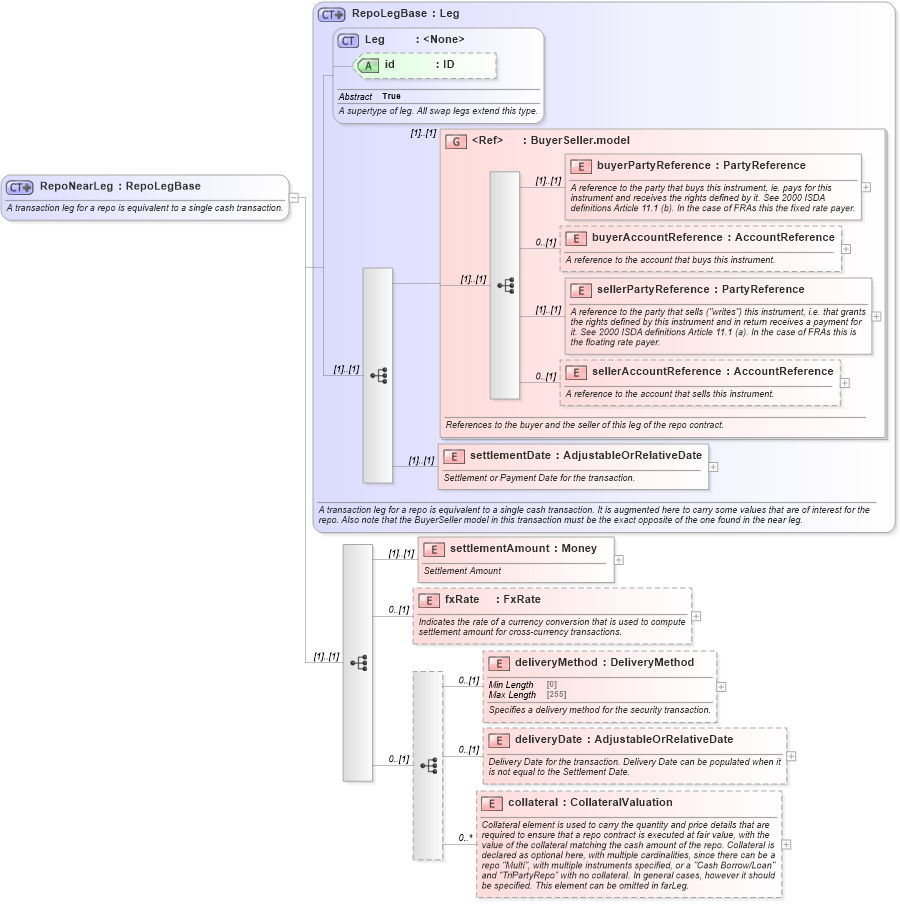

Collapse XSD Schema Diagram:
Drilldown into collateral in schema fpml-repo-5-8_xsd1 Drilldown into deliveryDate in schema fpml-repo-5-8_xsd1 Drilldown into deliveryMethod in schema fpml-repo-5-8_xsd1 Drilldown into fxRate in schema fpml-repo-5-8_xsd1 Drilldown into settlementAmount in schema fpml-repo-5-8_xsd1 Drilldown into settlementDate in schema fpml-repo-5-8_xsd1 Drilldown into sellerAccountReference in schema fpml-shared-5-8_xsd3 Drilldown into sellerPartyReference in schema fpml-shared-5-8_xsd3 Drilldown into buyerAccountReference in schema fpml-shared-5-8_xsd3 Drilldown into buyerPartyReference in schema fpml-shared-5-8_xsd3 Drilldown into BuyerSeller.model in schema fpml-shared-5-8_xsd3 Drilldown into id in schema fpml-shared-5-8_xsd3 Drilldown into Leg in schema fpml-shared-5-8_xsd3 Drilldown into RepoLegBase in schema fpml-repo-5-8_xsd1XSD Diagram of RepoNearLeg in schema fpml-repo-5-8_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RepoNearLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A transaction leg for a repo is equivalent to a single cash transaction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <!--2015-04-17:FpML Sec WG: Agreed to created a RepoTransactionBaseLeg type to group some of the shared near and far legs' components: "BuyerSeller.model, settlementDate, deliveryMethod, deliveryDate. This base type could be also used in the future securities' products.-->
        <!--2015-02-23: Sec WG: agreed to remove attribute "id", instead extension from base class "Leg" which already includes attribute "id"-->
        <xsd:extension base="RepoLegBase">
            <xsd:sequence>
                <!--2015-03-23:FpML SecWG: Replaced SettlementAmountOrCurrency.model with "settlementAmount" of type "Money" -->
                <xsd:element name="settlementAmount" type="Money">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Settlement Amount</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <!--2015-01-21:SecWG proposal: TBD-->
                <xsd:element name="fxRate" type="FxRate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Indicates the rate of a currency conversion that is used to compute settlement amount for cross-currency transactions.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <!--2015-04-14:FpML SecWG proposed associate the collateral collection with delivery method and date to create a dependency between deliveryMethod and collateral in a natural way using an optional sequence.-->
                <xsd:sequence minOccurs="0">
                    <xsd:element name="deliveryMethod" type="DeliveryMethod" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Specifies a delivery method for the security transaction.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="deliveryDate" type="AdjustableOrRelativeDate" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Delivery Date for the transaction. Delivery Date can be populated when it is not equal to the Settlement Date.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="collateral" type="CollateralValuation" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Collateral element is used to carry the quantity and price details that are required to ensure that a repo contract is executed at fair value, with the value of the collateral matching the cash amount of the repo. Collateral is declared as optional here, with multiple cardinalities, since there can be a repo "Multi", with multiple instruments specified, or a "Cash Borrow/Loan" and “TriPartyRepo” with no collateral. In general cases, however it should be specified. This element can be omitted in farLeg.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
buyerPartyReference nsD:buyerPartyReference (1) (1)
buyerAccountReference nsD:buyerAccountReference 0 (1)
sellerPartyReference nsD:sellerPartyReference (1) (1)
sellerAccountReference nsD:sellerAccountReference 0 (1)
settlementDate nsD:settlementDate (1) (1)
settlementAmount nsD:settlementAmount (1) (1)
fxRate nsD:fxRate 0 (1)
deliveryMethod nsD:deliveryMethod 0 (1)
deliveryDate nsD:deliveryDate 0 (1)
collateral nsD:collateral 0 unbounded
<xs:group> nsD:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:nearLeg
