Definition Type: Group
Name: CreditCurveCharacteristics.model
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-mktenv-5-9.xsd
Documentation:
The set of characterstics that describe the outputs of a credit curve.

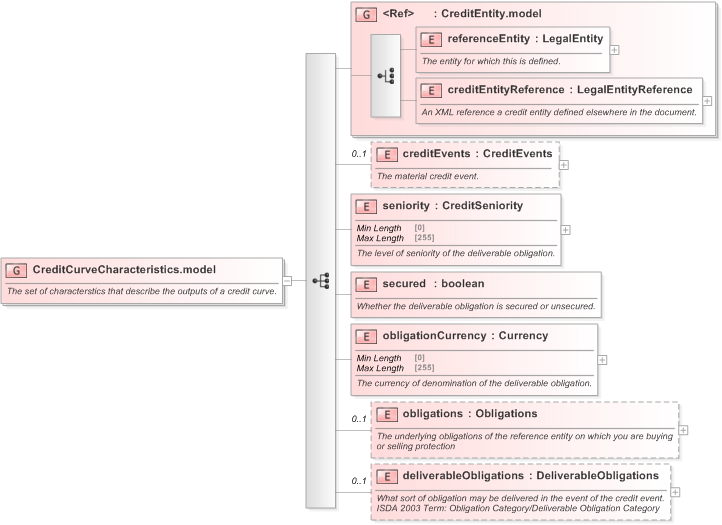

Collapse XSD Schema Diagram:
Drilldown into deliverableObligations in schema fpml-mktenv-5-9_xsd Drilldown into obligations in schema fpml-mktenv-5-9_xsd Drilldown into obligationCurrency in schema fpml-mktenv-5-9_xsd Drilldown into secured in schema fpml-mktenv-5-9_xsd Drilldown into seniority in schema fpml-mktenv-5-9_xsd Drilldown into creditEvents in schema fpml-mktenv-5-9_xsd Drilldown into creditEntityReference in schema fpml-asset-5-9_xsd Drilldown into referenceEntity in schema fpml-asset-5-9_xsd Drilldown into CreditEntity.model in schema fpml-asset-5-9_xsdXSD Diagram of CreditCurveCharacteristics.model in schema fpml-mktenv-5-9_xsd (Financial products Markup Language (FpML®) - Confirmation)
Collapse XSD Schema Code:
<xsd:group name="CreditCurveCharacteristics.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The set of characterstics that describe the outputs of a credit curve.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="CreditEntity.model" />
        <xsd:element name="creditEvents" type="CreditEvents" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The material credit event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="seniority" type="CreditSeniority">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The level of seniority of the deliverable obligation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="secured" type="xsd:boolean">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Whether the deliverable obligation is secured or unsecured.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="obligationCurrency" type="Currency">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The currency of denomination of the deliverable obligation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="obligations" type="Obligations" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The underlying obligations of the reference entity on which you are buying or selling protection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="deliverableObligations" type="DeliverableObligations" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">What sort of obligation may be delivered in the event of the credit event. ISDA 2003 Term: Obligation Category/Deliverable Obligation Category</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
referenceEntity nsA:referenceEntity (1) (1)
creditEntityReference nsA:creditEntityReference (1) (1)
creditEvents nsA:creditEvents 0 (1)
seniority nsA:seniority (1) (1)
secured nsA:secured (1) (1)
obligationCurrency nsA:obligationCurrency (1) (1)
obligations nsA:obligations 0 (1)
deliverableObligations nsA:deliverableObligations 0 (1)
<xs:group> nsA:CreditEntity.model (1) (1)
