Definition Type: ComplexType
Name: InstrumentTradeDetails
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsA:Product
Containing Schema: fpml-doc-5-9.xsd
Abstract
Documentation:
The economics of a trade of a multiply traded instrument.

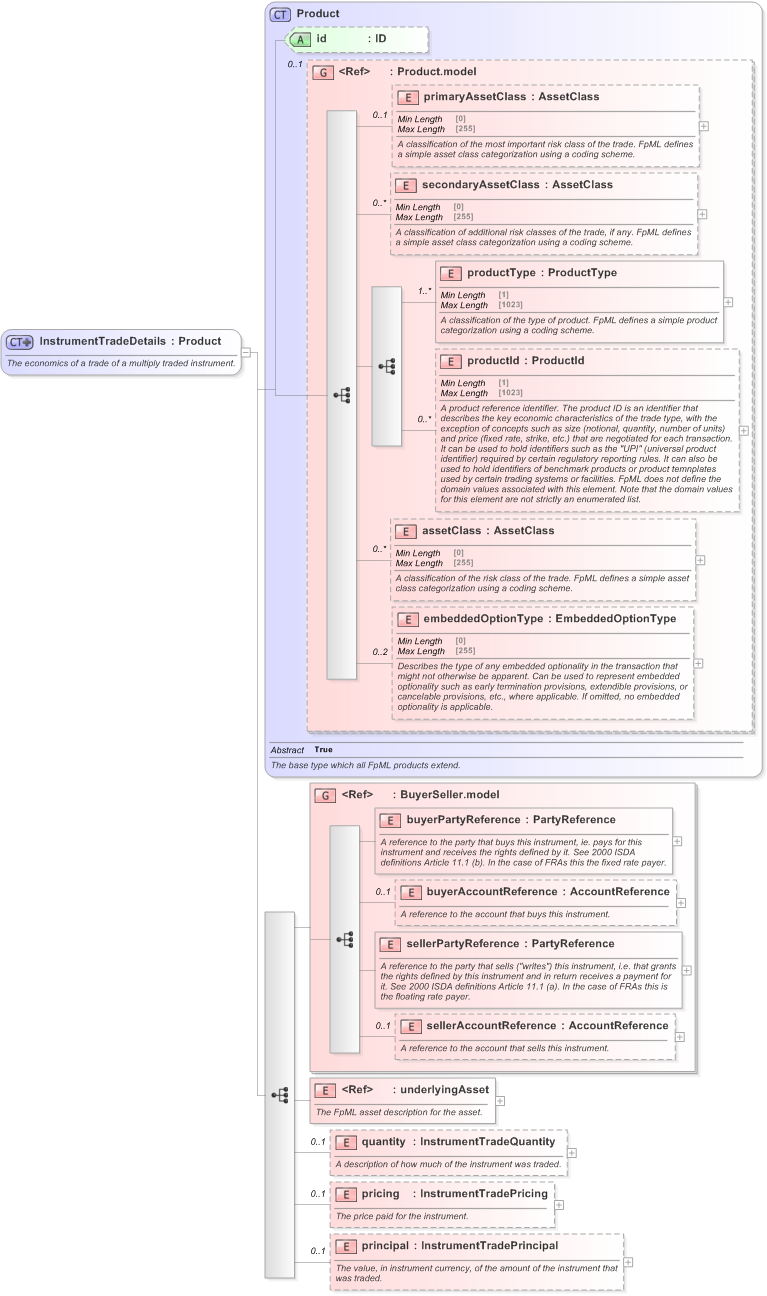

Collapse XSD Schema Diagram:
Drilldown into principal in schema fpml-doc-5-9_xsd Drilldown into pricing in schema fpml-doc-5-9_xsd Drilldown into quantity in schema fpml-doc-5-9_xsd Drilldown into underlyingAsset in schema fpml-asset-5-9_xsd Drilldown into sellerAccountReference in schema fpml-shared-5-9_xsd Drilldown into sellerPartyReference in schema fpml-shared-5-9_xsd Drilldown into buyerAccountReference in schema fpml-shared-5-9_xsd Drilldown into buyerPartyReference in schema fpml-shared-5-9_xsd Drilldown into BuyerSeller.model in schema fpml-shared-5-9_xsd Drilldown into embeddedOptionType in schema fpml-shared-5-9_xsd Drilldown into assetClass in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productType in schema fpml-shared-5-9_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into Product.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Product in schema fpml-shared-5-9_xsdXSD Diagram of InstrumentTradeDetails in schema fpml-doc-5-9_xsd (Financial products Markup Language (FpML®) - Legal)
Collapse XSD Schema Code:
<xsd:complexType name="InstrumentTradeDetails">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The economics of a trade of a multiply traded instrument.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="BuyerSeller.model" />
                <xsd:element ref="underlyingAsset">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The FpML asset description for the asset.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="quantity" type="InstrumentTradeQuantity" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A description of how much of the instrument was traded.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="pricing" type="InstrumentTradePricing" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The price paid for the instrument.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="principal" type="InstrumentTradePrincipal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The value, in instrument currency, of the amount of the instrument that was traded.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType (1) unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
embeddedOptionType nsA:embeddedOptionType 0 2
buyerPartyReference nsA:buyerPartyReference (1) (1)
buyerAccountReference nsA:buyerAccountReference 0 (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
sellerAccountReference nsA:sellerAccountReference 0 (1)
underlyingAsset nsA:underlyingAsset (1) (1)
quantity nsA:quantity 0 (1)
pricing nsA:pricing 0 (1)
principal nsA:principal 0 (1)
<xs:group> nsA:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:instrumentTradeDetails
