Definition Type: Element
Name: relatedExchangeId
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsA:ExchangeId
Containing Schema: fpml-asset-5-9.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.

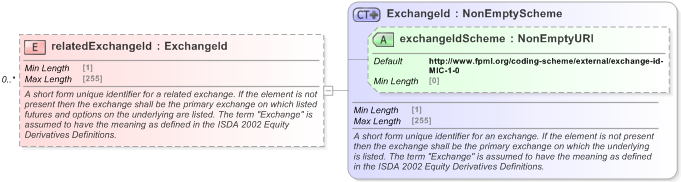

Collapse XSD Schema Diagram:
Drilldown into exchangeIdScheme in schema fpml-shared-5-9_xsd Drilldown into ExchangeId in schema fpml-shared-5-9_xsdXSD Diagram of relatedExchangeId in schema fpml-asset-5-9_xsd (Financial products Markup Language (FpML®) - Legal)
Collapse XSD Schema Code:
<xsd:element name="relatedExchangeId" type="ExchangeId" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
exchangeIdScheme nsA:exchangeIdScheme http://www.fpml.org/coding-scheme/external/exchange-id-MIC-1-0 (Optional)
Collapse Derivation Tree:
