Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PeriodRate
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-loan-5-9.xsd
Abstract
Documentation:
Represents a rate applicable against a well-defined or open-ended period.

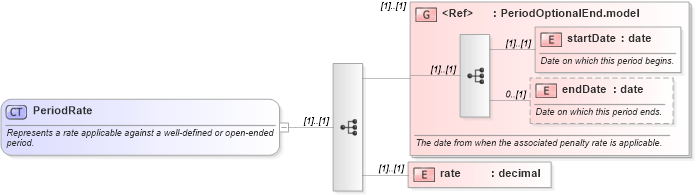

Collapse XSD Schema Diagram:
Drilldown into rate in schema fpml-loan-5-9_xsd Drilldown into endDate in schema fpml-loan-5-9_xsd Drilldown into startDate in schema fpml-loan-5-9_xsd Drilldown into PeriodOptionalEnd.model in schema fpml-loan-5-9_xsdXSD Diagram of PeriodRate in schema fpml-loan-5-9_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PeriodRate">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Represents a rate applicable against a well-defined or open-ended period.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PeriodOptionalEnd.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date from when the associated penalty rate is applicable.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:element name="rate" type="xsd:decimal" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
startDate nsA:startDate (1) (1)
endDate nsA:endDate 0 (1)
rate nsA:rate (1) (1)
<xs:group> nsA:PeriodOptionalEnd.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:capRate, nsA:defaultRate, nsA:floorRate, nsA:mandatoryCostRate, nsA:penaltyRatensA:rate,
