Definition Type: ComplexType
Name: Account
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-9.xsd
Abstract
Documentation:
A generic account that represents any party's account at another party. Parties may be identified by the account at another party.

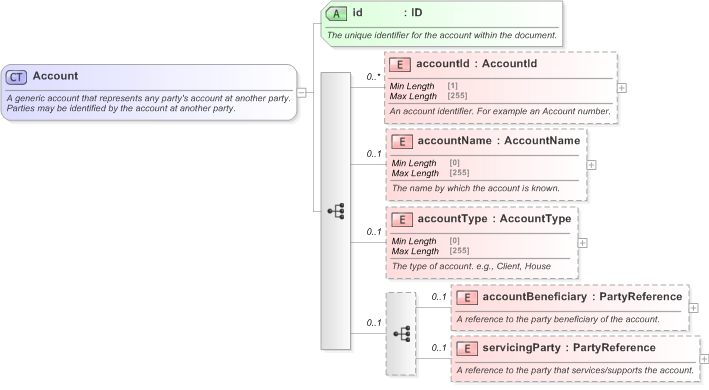

Collapse XSD Schema Diagram:
Drilldown into servicingParty in schema fpml-shared-5-9_xsd Drilldown into accountBeneficiary in schema fpml-shared-5-9_xsd Drilldown into accountType in schema fpml-shared-5-9_xsd Drilldown into accountName in schema fpml-shared-5-9_xsd Drilldown into accountId in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsdXSD Diagram of Account in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:complexType name="Account">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A generic account that represents any party's account at another party. Parties may be identified by the account at another party.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="accountId" type="AccountId" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An account identifier. For example an Account number.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accountName" type="AccountName" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The name by which the account is known.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="accountType" type="AccountType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The type of account. e.g., Client, House</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:sequence minOccurs="0">
            <xsd:element name="accountBeneficiary" type="PartyReference" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">A reference to the party beneficiary of the account.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="servicingParty" type="PartyReference" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">A reference to the party that services/supports the account.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" use="required">
        <xsd:annotation>
            <xsd:documentation xml:lang="en">The unique identifier for the account within the document.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
accountId nsA:accountId 0 unbounded
accountName nsA:accountName 0 (1)
accountType nsA:accountType 0 (1)
accountBeneficiary nsA:accountBeneficiary 0 (1)
servicingParty nsA:servicingParty 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Required
Collapse Derivation Tree:
Collapse References:
nsA:account
