Definition Type: ComplexType
Name: CreditRiskLimitRefused
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-pretrade-processes-5-9.xsd
Abstract

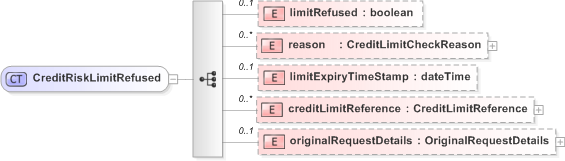

Collapse XSD Schema Diagram:
Drilldown into originalRequestDetails in schema fpml-pretrade-processes-5-9_xsd Drilldown into creditLimitReference in schema fpml-pretrade-processes-5-9_xsd Drilldown into limitExpiryTimeStamp in schema fpml-pretrade-processes-5-9_xsd Drilldown into reason in schema fpml-pretrade-processes-5-9_xsd Drilldown into limitRefused in schema fpml-pretrade-processes-5-9_xsdXSD Diagram of CreditRiskLimitRefused in schema fpml-pretrade-processes-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:complexType name="CreditRiskLimitRefused">
    <xsd:sequence>
        <xsd:element name="limitRefused" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="reason" type="CreditLimitCheckReason" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="limitExpiryTimeStamp" type="xsd:dateTime" minOccurs="0" />
        <xsd:element name="creditLimitReference" type="CreditLimitReference" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="originalRequestDetails" type="OriginalRequestDetails" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
limitRefused nsA:limitRefused 0 (1)
reason nsA:reason 0 unbounded
limitExpiryTimeStamp nsA:limitExpiryTimeStamp 0 (1)
creditLimitReference nsA:creditLimitReference 0 unbounded
originalRequestDetails nsA:originalRequestDetails 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:creditRiskLimit
