Definition Type: ComplexType
Name: DSAKeyValueType
Namespace: http://www.w3.org/2000/09/xmldsig#
Containing Schema: xmldsig-core-schema.xsd
Abstract

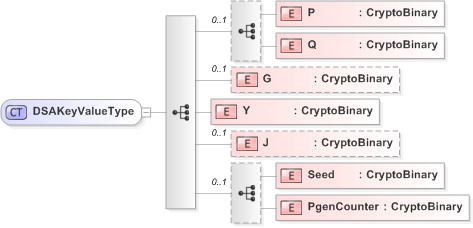

Collapse XSD Schema Diagram:
Drilldown into PgenCounter in schema xmldsig-core-schema_xsd Drilldown into Seed in schema xmldsig-core-schema_xsd Drilldown into J in schema xmldsig-core-schema_xsd Drilldown into Y in schema xmldsig-core-schema_xsd Drilldown into G in schema xmldsig-core-schema_xsd Drilldown into Q in schema xmldsig-core-schema_xsd Drilldown into P in schema xmldsig-core-schema_xsdXSD Diagram of DSAKeyValueType in schema xmldsig-core-schema_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<complexType name="DSAKeyValueType">
    <sequence>
        <sequence minOccurs="0">
            <element name="P" type="ds:CryptoBinary" />
            <element name="Q" type="ds:CryptoBinary" />
        </sequence>
        <element name="G" type="ds:CryptoBinary" minOccurs="0" />
        <element name="Y" type="ds:CryptoBinary" />
        <element name="J" type="ds:CryptoBinary" minOccurs="0" />
        <sequence minOccurs="0">
            <element name="Seed" type="ds:CryptoBinary" />
            <element name="PgenCounter" type="ds:CryptoBinary" />
        </sequence>
    </sequence>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
P dsig:P (1) (1)
Q dsig:Q (1) (1)
G dsig:G 0 (1)
Y dsig:Y (1) (1)
J dsig:J 0 (1)
Seed dsig:Seed (1) (1)
PgenCounter dsig:PgenCounter (1) (1)
Collapse Derivation Tree:
Collapse References:
dsig:DSAKeyValue
