Documentation for Financial products Markup Language (FpML®) - Pretrade
Definition Type: Element
Name: originalPackage
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsA:TradePackage
Containing Schema: fpml-pretrade-processes-5-9.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Fully describes the original trade package (prior to the exercise).

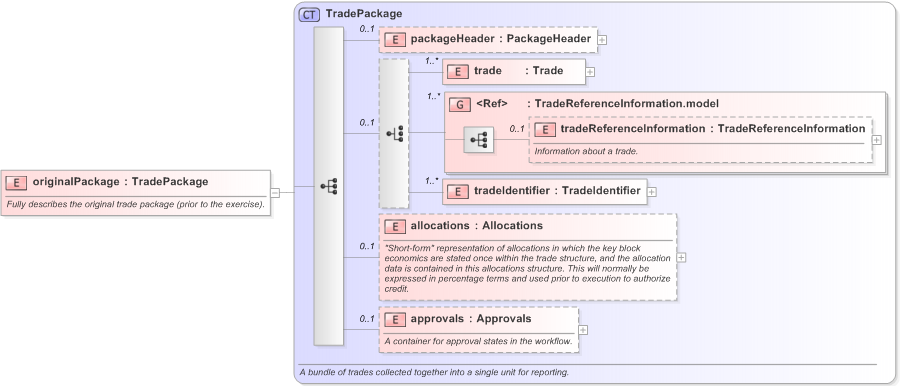

Collapse XSD Schema Diagram:
Drilldown into approvals in schema fpml-business-events-5-9_xsd Drilldown into allocations in schema fpml-business-events-5-9_xsd Drilldown into tradeIdentifier in schema fpml-business-events-5-9_xsd Drilldown into tradeReferenceInformation in schema fpml-business-events-5-9_xsd Drilldown into TradeReferenceInformation.model in schema fpml-business-events-5-9_xsd Drilldown into trade in schema fpml-business-events-5-9_xsd Drilldown into packageHeader in schema fpml-business-events-5-9_xsd Drilldown into TradePackage in schema fpml-business-events-5-9_xsdXSD Diagram of originalPackage in schema fpml-pretrade-processes-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:element name="originalPackage" type="TradePackage">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Fully describes the original trade package (prior to the exercise).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
packageHeader nsA:packageHeader 0 (1)
trade nsA:trade (1) unbounded
tradeReferenceInformation nsA:tradeReferenceInformation 0 (1)
tradeIdentifier nsA:tradeIdentifier (1) unbounded
allocations nsA:allocations 0 (1)
approvals nsA:approvals 0 (1)
<xs:group> nsA:TradeReferenceInformation.model (1) unbounded
Collapse Derivation Tree:
