Definition Type: Group
Name: PartiesAndAccounts.model
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-9.xsd
Documentation:
Supporting party and account definitions.

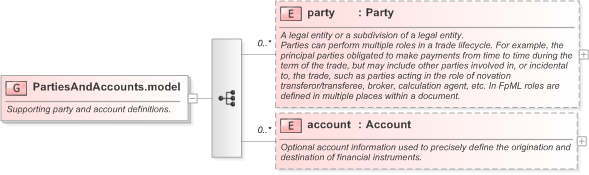

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-9_xsd Drilldown into party in schema fpml-shared-5-9_xsdXSD Diagram of PartiesAndAccounts.model in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:group name="PartiesAndAccounts.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Supporting party and account definitions.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="party" type="Party" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A legal entity or a subdivision of a legal entity.</xsd:documentation>
                <xsd:documentation xml:lang="en">Parties can perform multiple roles in a trade lifecycle. For example, the principal parties obligated to make payments from time to time during the term of the trade, but may include other parties involved in, or incidental to, the trade, such as parties acting in the role of novation transferor/transferee, broker, calculation agent, etc. In FpML roles are defined in multiple places within a document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="account" type="Account" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Optional account information used to precisely define the origination and destination of financial instruments.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
party nsA:party 0 unbounded
account nsA:account 0 unbounded
