Definition Type: ComplexType
Name: PartyEntityClassification
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-doc-5-9.xsd
Abstract
Documentation:
A type that specifies the classification of a party.

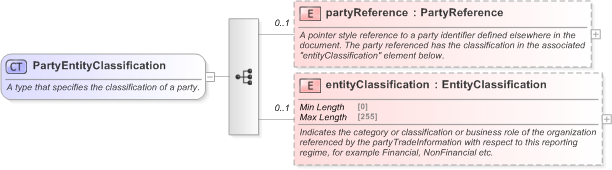

Collapse XSD Schema Diagram:
Drilldown into entityClassification in schema fpml-doc-5-9_xsd Drilldown into partyReference in schema fpml-doc-5-9_xsdXSD Diagram of PartyEntityClassification in schema fpml-doc-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:complexType name="PartyEntityClassification">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that specifies the classification of a party.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="partyReference" type="PartyReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A pointer style reference to a party identifier defined elsewhere in the document. The party referenced has the classification in the associated "entityClassification" element below.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="entityClassification" type="EntityClassification" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the category or classification or business role of the organization referenced by the partyTradeInformation with respect to this reporting regime, for example Financial, NonFinancial etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyReference nsA:partyReference 0 (1)
entityClassification nsA:entityClassification 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:partyEntityClassification
