Definition Type: Group
Name: PartyInformation.model
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-9.xsd
Documentation:
Information about a party for reporting purposes.

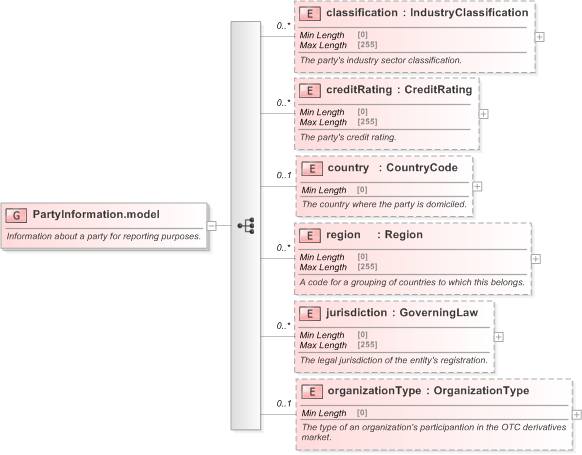

Collapse XSD Schema Diagram:
Drilldown into organizationType in schema fpml-shared-5-9_xsd Drilldown into jurisdiction in schema fpml-shared-5-9_xsd Drilldown into region in schema fpml-shared-5-9_xsd Drilldown into country in schema fpml-shared-5-9_xsd Drilldown into creditRating in schema fpml-shared-5-9_xsd Drilldown into classification in schema fpml-shared-5-9_xsdXSD Diagram of PartyInformation.model in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:group name="PartyInformation.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Information about a party for reporting purposes.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="classification" type="IndustryClassification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The party's industry sector classification.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="creditRating" type="CreditRating" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The party's credit rating.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="country" type="CountryCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The country where the party is domiciled.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="region" type="Region" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A code for a grouping of countries to which this belongs.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="jurisdiction" type="GoverningLaw" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The legal jurisdiction of the entity's registration.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="organizationType" type="OrganizationType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The type of an organization's participantion in the OTC derivatives market.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
classification nsA:classification 0 unbounded
creditRating nsA:creditRating 0 unbounded
country nsA:country 0 (1)
region nsA:region 0 unbounded
jurisdiction nsA:jurisdiction 0 unbounded
organizationType nsA:organizationType 0 (1)
