Definition Type: Element
Name: person
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsA:Person
Containing Schema: fpml-shared-5-9.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Optional information about people involved in a transaction or busines process. (These are eomployees of the party).

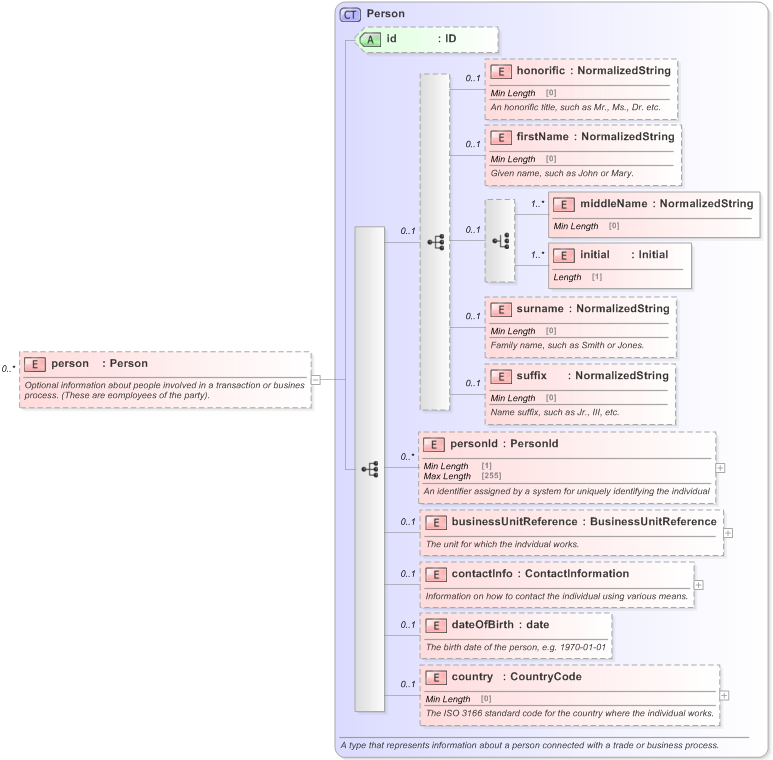

Collapse XSD Schema Diagram:
Drilldown into country in schema fpml-shared-5-9_xsd Drilldown into dateOfBirth in schema fpml-shared-5-9_xsd Drilldown into contactInfo in schema fpml-shared-5-9_xsd Drilldown into businessUnitReference in schema fpml-shared-5-9_xsd Drilldown into personId in schema fpml-shared-5-9_xsd Drilldown into suffix in schema fpml-shared-5-9_xsd Drilldown into surname in schema fpml-shared-5-9_xsd Drilldown into initial in schema fpml-shared-5-9_xsd Drilldown into middleName in schema fpml-shared-5-9_xsd Drilldown into firstName in schema fpml-shared-5-9_xsd Drilldown into honorific in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Person in schema fpml-shared-5-9_xsdXSD Diagram of person in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:element name="person" type="Person" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Optional information about people involved in a transaction or busines process. (These are eomployees of the party).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
honorific nsA:honorific 0 (1)
firstName nsA:firstName 0 (1)
middleName nsA:middleName (1) unbounded
initial nsA:initial (1) unbounded
surname nsA:surname 0 (1)
suffix nsA:suffix 0 (1)
personId nsA:personId 0 unbounded
businessUnitReference nsA:businessUnitReference 0 (1)
contactInfo nsA:contactInfo 0 (1)
dateOfBirth nsA:dateOfBirth 0 (1)
country nsA:country 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
