Documentation for Financial products Markup Language (FpML®) - Pretrade
Definition Type: Element
Name: settlementDate
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsA:AdjustableOrAdjustedDate
Containing Schema: fpml-fx-5-9.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
DEPRECATED. The settlement date is already expressed by europeanExercise/valueDate. The Settlement Date for the FxStraddle (if exercised at the expiryTime on the expiry Date).
Collapse XSD Schema Diagram:

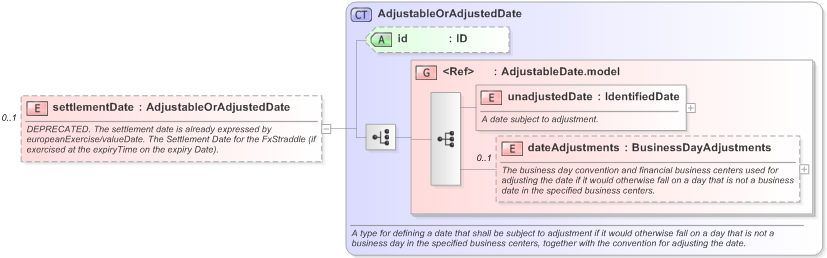

Drilldown into dateAdjustments in schema fpml-shared-5-9_xsd Drilldown into unadjustedDate in schema fpml-shared-5-9_xsd Drilldown into AdjustableDate.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into AdjustableOrAdjustedDate in schema fpml-shared-5-9_xsdXSD Diagram of settlementDate in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<xsd:element name="settlementDate" type="AdjustableOrAdjustedDate" minOccurs="0" fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The settlement date is already expressed by europeanExercise/valueDate" xmlns:fpml-annotation="http://www.fpml.org/annotation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">DEPRECATED. The settlement date is already expressed by europeanExercise/valueDate. The Settlement Date for the FxStraddle (if exercised at the expiryTime on the expiry Date).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsA:unadjustedDate (1) (1)
dateAdjustments nsA:dateAdjustments 0 (1)
<xs:group> nsA:AdjustableDate.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
