Definition Type: ComplexType
Name: SignatureType
Namespace: http://www.w3.org/2000/09/xmldsig#
Containing Schema: xmldsig-core-schema.xsd
Abstract

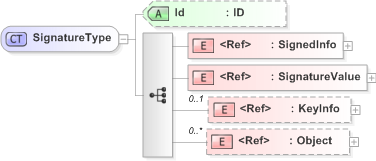

Collapse XSD Schema Diagram:
Drilldown into Object in schema xmldsig-core-schema_xsd Drilldown into KeyInfo in schema xmldsig-core-schema_xsd Drilldown into SignatureValue in schema xmldsig-core-schema_xsd Drilldown into SignedInfo in schema xmldsig-core-schema_xsd Drilldown into Id in schema xmldsig-core-schema_xsdXSD Diagram of SignatureType in schema xmldsig-core-schema_xsd (Financial products Markup Language (FpML®) - Pretrade)
Collapse XSD Schema Code:
<complexType name="SignatureType">
    <sequence>
        <element ref="ds:SignedInfo" />
        <element ref="ds:SignatureValue" />
        <element ref="ds:KeyInfo" minOccurs="0" />
        <element ref="ds:Object" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
    <attribute name="Id" type="ID" use="optional" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SignedInfo dsig:SignedInfo (1) (1)
SignatureValue dsig:SignatureValue (1) (1)
KeyInfo dsig:KeyInfo 0 (1)
Object dsig:Object 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Id dsig:Id Optional
Collapse Derivation Tree:
Collapse References:
dsig:Signature
