Definition Type: Element
Name: change
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:TradeChangeContent
Containing Schema: fpml-business-events-5-9.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

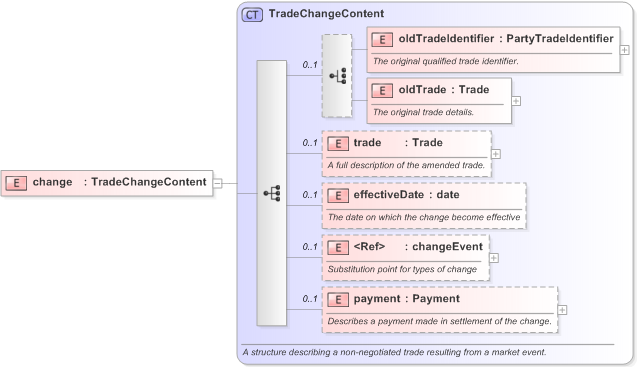

Drilldown into payment in schema fpml-business-events-5-9_xsd Drilldown into changeEvent in schema fpml-business-events-5-9_xsd Drilldown into effectiveDate in schema fpml-business-events-5-9_xsd Drilldown into trade in schema fpml-business-events-5-9_xsd Drilldown into oldTrade in schema fpml-business-events-5-9_xsd Drilldown into oldTradeIdentifier in schema fpml-business-events-5-9_xsd Drilldown into TradeChangeContent in schema fpml-business-events-5-9_xsdXSD Diagram of change in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:element name="change" type="TradeChangeContent" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
oldTradeIdentifier nsA:oldTradeIdentifier (1) (1)
oldTrade nsA:oldTrade (1) (1)
trade nsA:trade 0 (1)
effectiveDate nsA:effectiveDate 0 (1)
changeEvent nsA:changeEvent 0 (1)
payment nsA:payment 0 (1)
Collapse Derivation Tree:
Collapse Comments:
