Definition Type: Element
Name: changeInNotionalAmount
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:NonNegativeMoney
Containing Schema: fpml-business-events-5-9.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination => reduction, Increase => greater.)

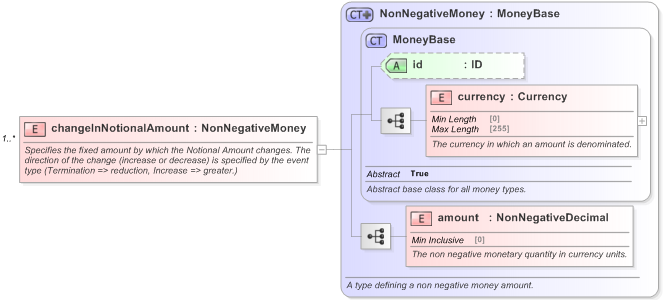

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-shared-5-9_xsd Drilldown into currency in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into MoneyBase in schema fpml-shared-5-9_xsd Drilldown into NonNegativeMoney in schema fpml-shared-5-9_xsdXSD Diagram of changeInNotionalAmount in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:element name="changeInNotionalAmount" type="NonNegativeMoney" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination =&gt; reduction, Increase =&gt; greater.)</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsA:currency (1) (1)
amount nsA:amount (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
