Definition Type: ComplexType
Name: EquityDerivativeLongFormBase
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:EquityDerivativeBase
Containing Schema: fpml-eqd-5-9.xsd
Abstract True
Documentation:
type for defining the common features of equity derivatives.

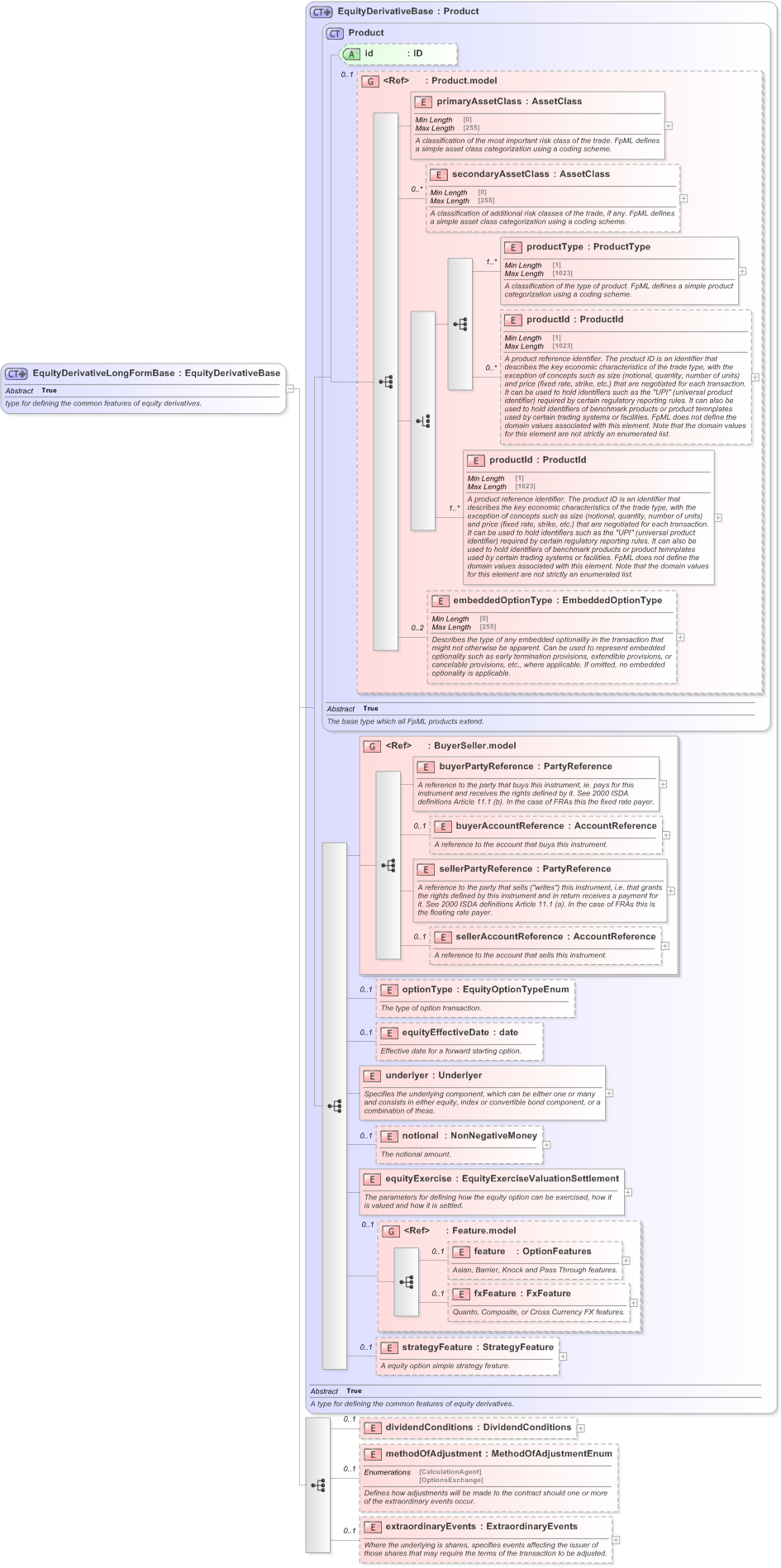

Collapse XSD Schema Diagram:
Drilldown into extraordinaryEvents in schema fpml-eqd-5-9_xsd Drilldown into methodOfAdjustment in schema fpml-eqd-5-9_xsd Drilldown into dividendConditions in schema fpml-eqd-5-9_xsd Drilldown into strategyFeature in schema fpml-eqd-5-9_xsd Drilldown into fxFeature in schema fpml-eq-shared-5-9_xsd Drilldown into feature in schema fpml-eq-shared-5-9_xsd Drilldown into Feature.model in schema fpml-eq-shared-5-9_xsd Drilldown into equityExercise in schema fpml-eqd-5-9_xsd Drilldown into notional in schema fpml-eqd-5-9_xsd Drilldown into underlyer in schema fpml-eqd-5-9_xsd Drilldown into equityEffectiveDate in schema fpml-eqd-5-9_xsd Drilldown into optionType in schema fpml-eqd-5-9_xsd Drilldown into sellerAccountReference in schema fpml-shared-5-9_xsd Drilldown into sellerPartyReference in schema fpml-shared-5-9_xsd Drilldown into buyerAccountReference in schema fpml-shared-5-9_xsd Drilldown into buyerPartyReference in schema fpml-shared-5-9_xsd Drilldown into BuyerSeller.model in schema fpml-shared-5-9_xsd Drilldown into embeddedOptionType in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productType in schema fpml-shared-5-9_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into Product.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Product in schema fpml-shared-5-9_xsd Drilldown into EquityDerivativeBase in schema fpml-eqd-5-9_xsdXSD Diagram of EquityDerivativeLongFormBase in schema fpml-eqd-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="EquityDerivativeLongFormBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">type for defining the common features of equity derivatives.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="EquityDerivativeBase">
            <xsd:sequence>
                <xsd:element name="dividendConditions" type="DividendConditions" minOccurs="0" />
                <xsd:element name="methodOfAdjustment" type="MethodOfAdjustmentEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines how adjustments will be made to the contract should one or more of the extraordinary events occur.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass (1) (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType (1) unbounded
productId nsA:productId 0 unbounded
productId nsA:productId (1) unbounded
embeddedOptionType nsA:embeddedOptionType 0 2
buyerPartyReference nsA:buyerPartyReference (1) (1)
buyerAccountReference nsA:buyerAccountReference 0 (1)
sellerPartyReference nsA:sellerPartyReference (1) (1)
sellerAccountReference nsA:sellerAccountReference 0 (1)
optionType nsA:optionType 0 (1)
equityEffectiveDate nsA:equityEffectiveDate 0 (1)
underlyer nsA:underlyer (1) (1)
notional nsA:notional 0 (1)
equityExercise nsA:equityExercise (1) (1)
feature nsA:feature 0 (1)
fxFeature nsA:fxFeature 0 (1)
strategyFeature nsA:strategyFeature 0 (1)
dividendConditions nsA:dividendConditions 0 (1)
methodOfAdjustment nsA:methodOfAdjustment 0 (1)
extraordinaryEvents nsA:extraordinaryEvents 0 (1)
<xs:group> nsA:BuyerSeller.model (1) (1)
<xs:group> nsA:Feature.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:EquityForward, nsA:EquityOption
