Definition Type: ComplexType
Name: EquityEuropeanExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:Exercise
Containing Schema: fpml-eqd-5-9.xsd
Abstract
Documentation:
A type for defining exercise procedures associated with a European style exercise of an equity option.

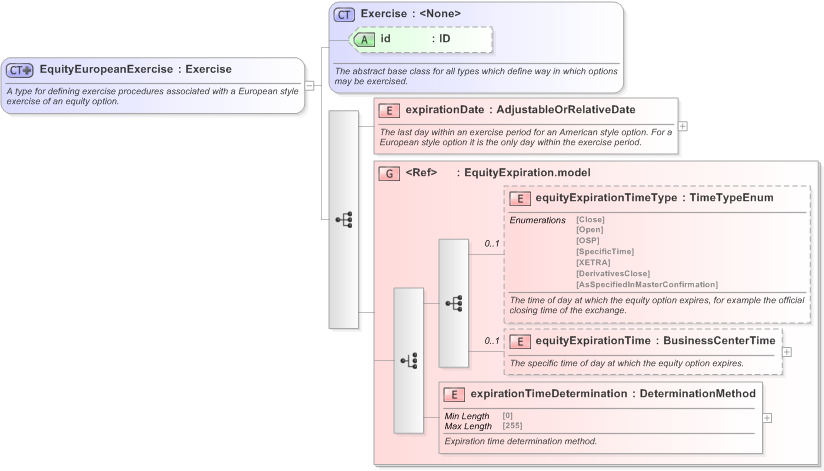

Collapse XSD Schema Diagram:
Drilldown into expirationTimeDetermination in schema fpml-eqd-5-9_xsd Drilldown into equityExpirationTime in schema fpml-eqd-5-9_xsd Drilldown into equityExpirationTimeType in schema fpml-eqd-5-9_xsd Drilldown into EquityExpiration.model in schema fpml-eqd-5-9_xsd Drilldown into expirationDate in schema fpml-eqd-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Exercise in schema fpml-shared-5-9_xsdXSD Diagram of EquityEuropeanExercise in schema fpml-eqd-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="EquityEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining exercise procedures associated with a European style exercise of an equity option.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Exercise">
            <xsd:sequence>
                <xsd:element name="expirationDate" type="AdjustableOrRelativeDate">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="EquityExpiration.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expirationDate nsA:expirationDate (1) (1)
equityExpirationTimeType nsA:equityExpirationTimeType 0 (1)
equityExpirationTime nsA:equityExpirationTime 0 (1)
expirationTimeDetermination nsA:expirationTimeDetermination (1) (1)
<xs:group> nsA:EquityExpiration.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:equityEuropeanExercise
