Definition Type: ComplexType
Name: EquityMultipleExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-eqd-5-9.xsd
Abstract
Documentation:
A type for defining the multiple exercise provisions of an American or Bermuda style equity option.

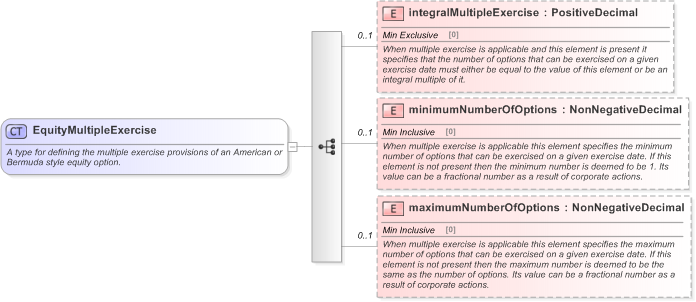

Collapse XSD Schema Diagram:
Drilldown into maximumNumberOfOptions in schema fpml-eqd-5-9_xsd Drilldown into minimumNumberOfOptions in schema fpml-eqd-5-9_xsd Drilldown into integralMultipleExercise in schema fpml-eqd-5-9_xsdXSD Diagram of EquityMultipleExercise in schema fpml-eqd-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="EquityMultipleExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining the multiple exercise provisions of an American or Bermuda style equity option.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="integralMultipleExercise" type="PositiveDecimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">When multiple exercise is applicable and this element is present it specifies that the number of options that can be exercised on a given exercise date must either be equal to the value of this element or be an integral multiple of it.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minimumNumberOfOptions" type="NonNegativeDecimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">When multiple exercise is applicable this element specifies the minimum number of options that can be exercised on a given exercise date. If this element is not present then the minimum number is deemed to be 1. Its value can be a fractional number as a result of corporate actions.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="maximumNumberOfOptions" type="NonNegativeDecimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">When multiple exercise is applicable this element specifies the maximum number of options that can be exercised on a given exercise date. If this element is not present then the maximum number is deemed to be the same as the number of options. Its value can be a fractional number as a result of corporate actions.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
integralMultipleExercise nsA:integralMultipleExercise 0 (1)
minimumNumberOfOptions nsA:minimumNumberOfOptions 0 (1)
maximumNumberOfOptions nsA:maximumNumberOfOptions 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:equityMultipleExercise, nsA:equityMultipleExercise
