Definition Type: ComplexType
Name: PrePayment
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsA:PaymentBase
Containing Schema: fpml-eqd-5-9.xsd
Abstract
Documentation:
A type for defining PrePayment.

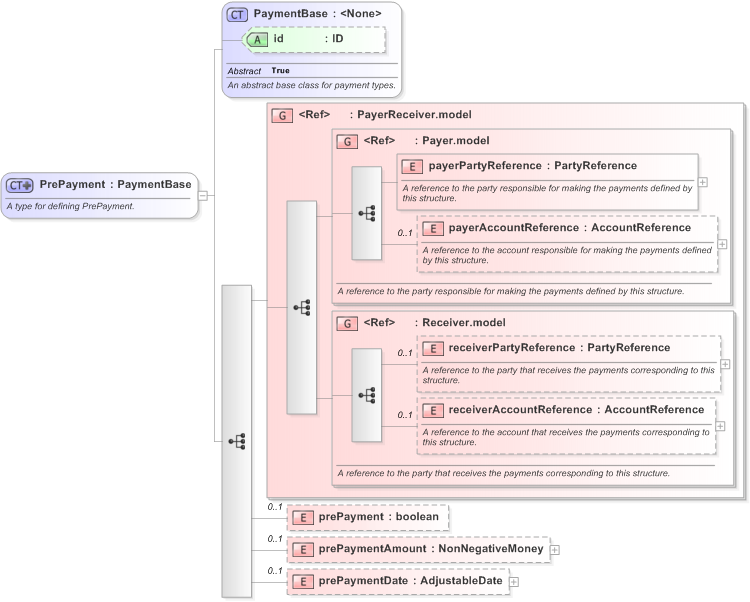

Collapse XSD Schema Diagram:
Drilldown into prePaymentDate in schema fpml-eqd-5-9_xsd Drilldown into prePaymentAmount in schema fpml-eqd-5-9_xsd Drilldown into prePayment in schema fpml-eqd-5-9_xsd Drilldown into receiverAccountReference in schema fpml-shared-5-9_xsd Drilldown into receiverPartyReference in schema fpml-shared-5-9_xsd Drilldown into Receiver.model in schema fpml-shared-5-9_xsd Drilldown into payerAccountReference in schema fpml-shared-5-9_xsd Drilldown into payerPartyReference in schema fpml-shared-5-9_xsd Drilldown into Payer.model in schema fpml-shared-5-9_xsd Drilldown into PayerReceiver.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into PaymentBase in schema fpml-shared-5-9_xsdXSD Diagram of PrePayment in schema fpml-eqd-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="PrePayment">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining PrePayment.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PaymentBase">
            <xsd:sequence>
                <xsd:group ref="PayerReceiver.model" />
                <xsd:element name="prePayment" type="xsd:boolean" minOccurs="0" />
                <xsd:element name="prePaymentAmount" type="NonNegativeMoney" minOccurs="0" />
                <xsd:element name="prePaymentDate" type="AdjustableDate" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference (1) (1)
payerAccountReference nsA:payerAccountReference 0 (1)
receiverPartyReference nsA:receiverPartyReference 0 (1)
receiverAccountReference nsA:receiverAccountReference 0 (1)
prePayment nsA:prePayment 0 (1)
prePaymentAmount nsA:prePaymentAmount 0 (1)
prePaymentDate nsA:prePaymentDate 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
<xs:group> nsA:Payer.model (1) (1)
<xs:group> nsA:Receiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:prePayment
