Definition Type: ComplexType
Name: ReportingRegimeIdentifier
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-business-events-5-9.xsd
Abstract
Documentation:
A type that provides identification for reporting regimes.

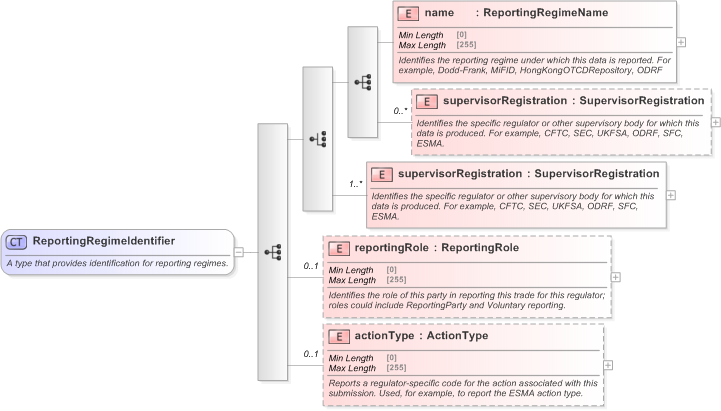

Collapse XSD Schema Diagram:
Drilldown into actionType in schema fpml-business-events-5-9_xsd Drilldown into reportingRole in schema fpml-business-events-5-9_xsd Drilldown into supervisorRegistration in schema fpml-business-events-5-9_xsd Drilldown into supervisorRegistration in schema fpml-business-events-5-9_xsd Drilldown into name in schema fpml-business-events-5-9_xsdXSD Diagram of ReportingRegimeIdentifier in schema fpml-business-events-5-9_xsd (Financial products Markup Language (FpML®) - Record Keeping)
Collapse XSD Schema Code:
<xsd:complexType name="ReportingRegimeIdentifier">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that provides identification for reporting regimes.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice>
            <xsd:sequence>
                <xsd:element name="name" type="ReportingRegimeName">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Identifies the reporting regime under which this data is reported. For example, Dodd-Frank, MiFID, HongKongOTCDRepository, ODRF</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="supervisorRegistration" type="SupervisorRegistration" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element name="supervisorRegistration" type="SupervisorRegistration" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="reportingRole" type="ReportingRole" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Identifies the role of this party in reporting this trade for this regulator; roles could include ReportingParty and Voluntary reporting.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="actionType" type="ActionType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reports a regulator-specific code for the action associated with this submission. Used, for example, to report the ESMA action type.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
supervisorRegistration nsA:supervisorRegistration 0 unbounded
supervisorRegistration nsA:supervisorRegistration (1) unbounded
reportingRole nsA:reportingRole 0 (1)
actionType nsA:actionType 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:reportingRegime, nsA:reportingRegime, nsA:reportingRegime, nsA:reportingRegime
