Definition Type: ComplexType
Name: BasketReferenceInformation
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-cd-5-9.xsd
Abstract
Documentation:
CDS Basket Reference Information

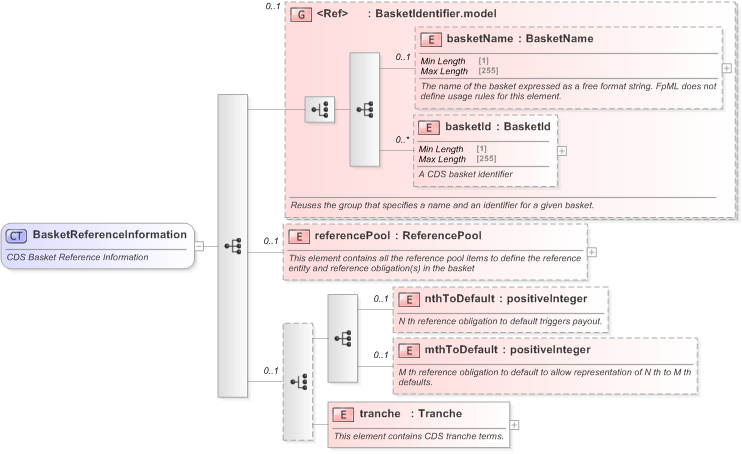

Collapse XSD Schema Diagram:
Drilldown into tranche in schema fpml-cd-5-9_xsd Drilldown into mthToDefault in schema fpml-cd-5-9_xsd Drilldown into nthToDefault in schema fpml-cd-5-9_xsd Drilldown into referencePool in schema fpml-cd-5-9_xsd Drilldown into basketId in schema fpml-asset-5-9_xsd Drilldown into basketName in schema fpml-asset-5-9_xsd Drilldown into BasketIdentifier.model in schema fpml-asset-5-9_xsdXSD Diagram of BasketReferenceInformation in schema fpml-cd-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="BasketReferenceInformation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">CDS Basket Reference Information</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="BasketIdentifier.model" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reuses the group that specifies a name and an identifier for a given basket.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:element name="referencePool" type="ReferencePool" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">This element contains all the reference pool items to define the reference entity and reference obligation(s) in the basket</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0">
            <xsd:sequence>
                <xsd:element name="nthToDefault" type="xsd:positiveInteger" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">N th reference obligation to default triggers payout.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="mthToDefault" type="xsd:positiveInteger" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">M th reference obligation to default to allow representation of N th to M th defaults.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element name="tranche" type="Tranche">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">This element contains CDS tranche terms.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
basketName nsA:basketName 0 (1)
basketId nsA:basketId 0 unbounded
referencePool nsA:referencePool 0 (1)
nthToDefault nsA:nthToDefault 0 (1)
mthToDefault nsA:mthToDefault 0 (1)
tranche nsA:tranche (1) (1)
<xs:group> nsA:BasketIdentifier.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:basketReferenceInformation
