Definition Type: ComplexType
Name: BusinessCenterTime
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-9.xsd
Abstract
Documentation:
A type for defining a time with respect to a business day calendar location. For example, 11:00am London time.
Collapse XSD Schema Diagram:

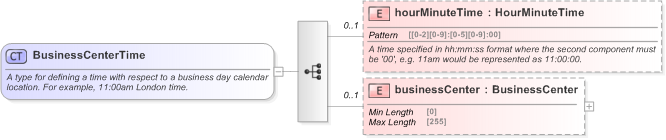

Drilldown into businessCenter in schema fpml-shared-5-9_xsd Drilldown into hourMinuteTime in schema fpml-shared-5-9_xsdXSD Diagram of BusinessCenterTime in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="BusinessCenterTime">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining a time with respect to a business day calendar location. For example, 11:00am London time.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="hourMinuteTime" type="HourMinuteTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A time specified in hh:mm:ss format where the second component must be '00', e.g. 11am would be represented as 11:00:00.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="businessCenter" type="BusinessCenter" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hourMinuteTime nsA:hourMinuteTime 0 (1)
businessCenter nsA:businessCenter 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:cashSettlementValuationTime, nsA:earliestExecutionTime, nsA:earliestExerciseTime, nsA:earliestExerciseTime, nsA:earliestExerciseTime, nsA:equityExpirationTime, nsA:expirationTime, nsA:expirationTime, nsA:expirationTime, nsA:expirationTime, nsA:expirationTime, nsA:expiryTime, nsA:expiryTime, nsA:expiryTime, nsA:expiryTime, nsA:fixingTime, nsA:fixingTime, nsA:fixingTime, nsA:fixingTime, nsA:fixingTime, nsA:fixingTime, nsA:latestExecutionTime, nsA:latestExerciseTime, nsA:latestExerciseTime, nsA:latestExerciseTime, nsA:latestExerciseTimensA:observationEndTime, nsA:observationEndTime, nsA:observationEndTime, nsA:observationStartTime, nsA:observationStartTime, nsA:observationStartTime, nsA:observationTime, nsA:time, nsA:valuationTime, nsA:valuationTime,
