Documentation for Financial products Markup Language (FpML®) - Reporting
Definition Type: Group
Name: DefinitionAndNettedCashflows.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-reconciliation-5-9.xsd

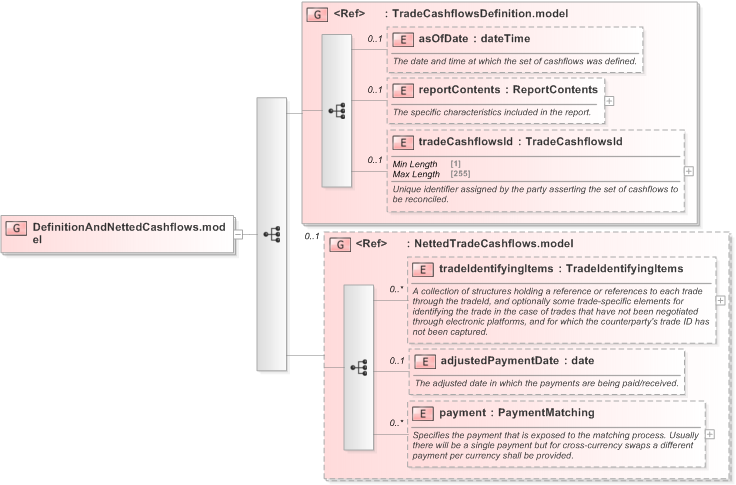

Collapse XSD Schema Diagram:
Drilldown into payment in schema fpml-reconciliation-5-9_xsd Drilldown into adjustedPaymentDate in schema fpml-reconciliation-5-9_xsd Drilldown into tradeIdentifyingItems in schema fpml-reconciliation-5-9_xsd Drilldown into NettedTradeCashflows.model in schema fpml-reconciliation-5-9_xsd Drilldown into tradeCashflowsId in schema fpml-reconciliation-5-9_xsd Drilldown into reportContents in schema fpml-reconciliation-5-9_xsd Drilldown into asOfDate in schema fpml-reconciliation-5-9_xsd Drilldown into TradeCashflowsDefinition.model in schema fpml-reconciliation-5-9_xsdXSD Diagram of DefinitionAndNettedCashflows.model in schema fpml-reconciliation-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:group name="DefinitionAndNettedCashflows.model">
    <xsd:sequence>
        <xsd:group ref="TradeCashflowsDefinition.model" />
        <xsd:group ref="NettedTradeCashflows.model" minOccurs="0" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
asOfDate nsA:asOfDate 0 (1)
reportContents nsA:reportContents 0 (1)
tradeCashflowsId nsA:tradeCashflowsId 0 (1)
tradeIdentifyingItems nsA:tradeIdentifyingItems 0 unbounded
adjustedPaymentDate nsA:adjustedPaymentDate 0 (1)
payment nsA:payment 0 unbounded
<xs:group> nsA:TradeCashflowsDefinition.model (1) (1)
<xs:group> nsA:NettedTradeCashflows.model 0 (1)
Collapse Comments:
