Definition Type: ComplexType
Name: FxAsianFeature
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
Descibes the averaging period properties for an asian option.

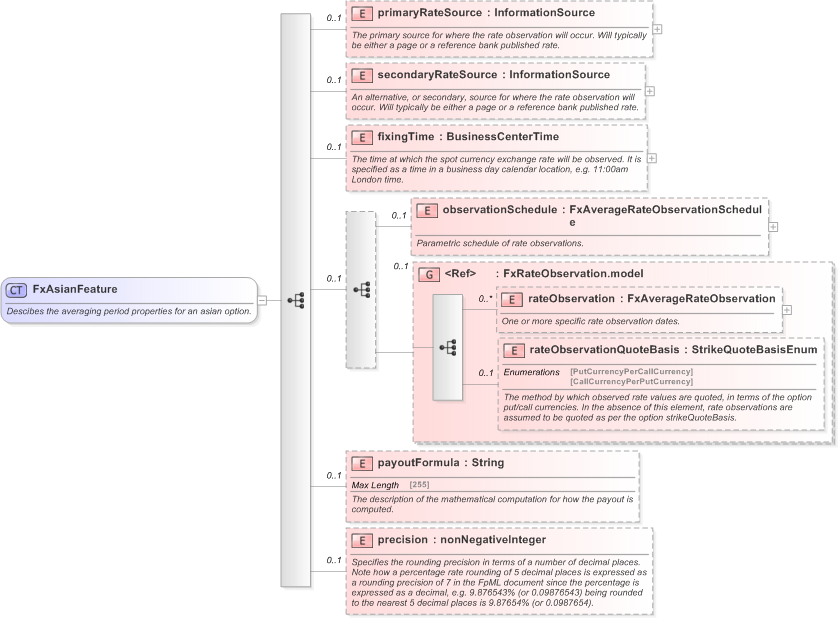

Collapse XSD Schema Diagram:
Drilldown into precision in schema fpml-fx-5-9_xsd Drilldown into payoutFormula in schema fpml-fx-5-9_xsd Drilldown into rateObservationQuoteBasis in schema fpml-fx-5-9_xsd Drilldown into rateObservation in schema fpml-fx-5-9_xsd Drilldown into FxRateObservation.model in schema fpml-fx-5-9_xsd Drilldown into observationSchedule in schema fpml-fx-5-9_xsd Drilldown into fixingTime in schema fpml-fx-5-9_xsd Drilldown into secondaryRateSource in schema fpml-fx-5-9_xsd Drilldown into primaryRateSource in schema fpml-fx-5-9_xsdXSD Diagram of FxAsianFeature in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxAsianFeature">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Descibes the averaging period properties for an asian option.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="primaryRateSource" type="InformationSource" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The primary source for where the rate observation will occur. Will typically be either a page or a reference bank published rate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="secondaryRateSource" type="InformationSource" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An alternative, or secondary, source for where the rate observation will occur. Will typically be either a page or a reference bank published rate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fixingTime" type="BusinessCenterTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The time at which the spot currency exchange rate will be observed. It is specified as a time in a business day calendar location, e.g. 11:00am London time.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:sequence minOccurs="0">
            <xsd:element name="observationSchedule" type="FxAverageRateObservationSchedule" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Parametric schedule of rate observations.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:group ref="FxRateObservation.model" minOccurs="0" />
        </xsd:sequence>
        <xsd:element name="payoutFormula" type="String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The description of the mathematical computation for how the payout is computed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="precision" type="xsd:nonNegativeInteger" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the rounding precision in terms of a number of decimal places. Note how a percentage rate rounding of 5 decimal places is expressed as a rounding precision of 7 in the FpML document since the percentage is expressed as a decimal, e.g. 9.876543% (or 0.09876543) being rounded to the nearest 5 decimal places is 9.87654% (or 0.0987654).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryRateSource nsA:primaryRateSource 0 (1)
secondaryRateSource nsA:secondaryRateSource 0 (1)
fixingTime nsA:fixingTime 0 (1)
observationSchedule nsA:observationSchedule 0 (1)
rateObservation nsA:rateObservation 0 unbounded
rateObservationQuoteBasis nsA:rateObservationQuoteBasis 0 (1)
payoutFormula nsA:payoutFormula 0 (1)
precision nsA:precision 0 (1)
<xs:group> nsA:FxRateObservation.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:asian
