Definition Type: ComplexType
Name: FxDisruption
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
A structure describing how disruption for a specified currency pair should be handled

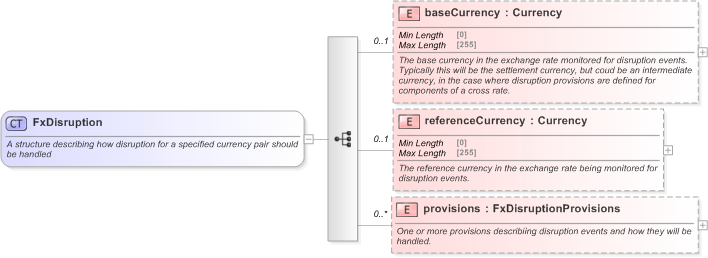

Collapse XSD Schema Diagram:
Drilldown into provisions in schema fpml-fx-5-9_xsd Drilldown into referenceCurrency in schema fpml-fx-5-9_xsd Drilldown into baseCurrency in schema fpml-fx-5-9_xsdXSD Diagram of FxDisruption in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxDisruption">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure describing how disruption for a specified currency pair should be handled</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="baseCurrency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The base currency in the exchange rate monitored for disruption events. Typically this will be the settlement currency, but coud be an intermediate currency, in the case where disruption provisions are defined for components of a cross rate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="referenceCurrency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The reference currency in the exchange rate being monitored for disruption events.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="provisions" type="FxDisruptionProvisions" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">One or more provisions describiing disruption events and how they will be handled.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
baseCurrency nsA:baseCurrency 0 (1)
referenceCurrency nsA:referenceCurrency 0 (1)
provisions nsA:provisions 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:disruption
