Definition Type: ComplexType
Name: FxDisruptionProvisions
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
Describes a set of disruption events and the fallbacks they will invoke

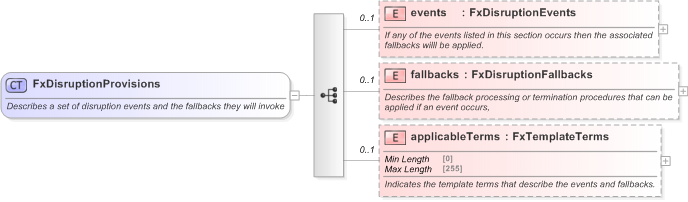

Collapse XSD Schema Diagram:
Drilldown into applicableTerms in schema fpml-fx-5-9_xsd Drilldown into fallbacks in schema fpml-fx-5-9_xsd Drilldown into events in schema fpml-fx-5-9_xsdXSD Diagram of FxDisruptionProvisions in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxDisruptionProvisions">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes a set of disruption events and the fallbacks they will invoke</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="events" type="FxDisruptionEvents" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">If any of the events listed in this section occurs then the associated fallbacks willl be applied.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fallbacks" type="FxDisruptionFallbacks" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Describes the fallback processing or termination procedures that can be applied if an event occurs,</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="applicableTerms" type="FxTemplateTerms" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates the template terms that describe the events and fallbacks.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
events nsA:events 0 (1)
fallbacks nsA:fallbacks 0 (1)
applicableTerms nsA:applicableTerms 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:provisions
