Definition Type: ComplexType
Name: FxEuropeanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Exercise
Containing Schema: fpml-fx-5-9.xsd
Abstract
Documentation:
Describes the characteristics for European exercise of FX products.

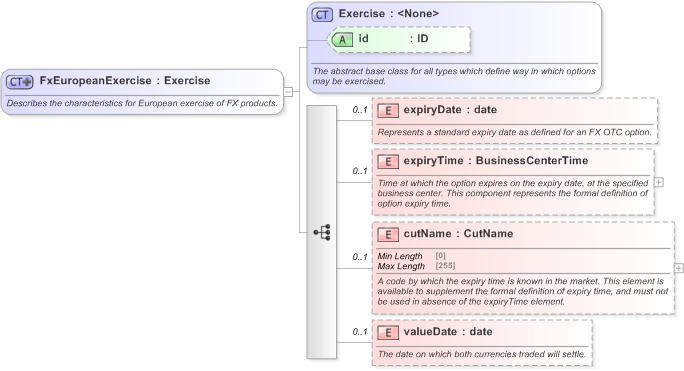

Collapse XSD Schema Diagram:
Drilldown into valueDate in schema fpml-fx-5-9_xsd Drilldown into cutName in schema fpml-fx-5-9_xsd Drilldown into expiryTime in schema fpml-fx-5-9_xsd Drilldown into expiryDate in schema fpml-fx-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Exercise in schema fpml-shared-5-9_xsdXSD Diagram of FxEuropeanExercise in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="FxEuropeanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the characteristics for European exercise of FX products.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Exercise">
            <xsd:sequence>
                <xsd:element name="expiryDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Represents a standard expiry date as defined for an FX OTC option.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryTime" type="BusinessCenterTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Time at which the option expires on the expiry date, at the specified business center. This component represents the formal definition of option expiry time.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="cutName" type="CutName" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A code by which the expiry time is known in the market. This element is available to supplement the formal definition of expiry time, and must not be used in absence of the expiryTime element.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="valueDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The date on which both currencies traded will settle.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expiryDate nsA:expiryDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
cutName nsA:cutName 0 (1)
valueDate nsA:valueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:europeanExercise, nsA:europeanExercise, nsA:europeanExercise
