Definition Type: Group
Name: FxTenor.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-fx-5-9.xsd
Collapse XSD Schema Diagram:

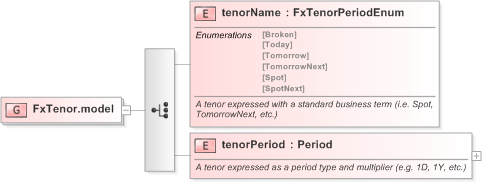

Drilldown into tenorPeriod in schema fpml-fx-5-9_xsd Drilldown into tenorName in schema fpml-fx-5-9_xsdXSD Diagram of FxTenor.model in schema fpml-fx-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:group name="FxTenor.model">
    <xsd:choice>
        <xsd:element name="tenorName" type="FxTenorPeriodEnum">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A tenor expressed with a standard business term (i.e. Spot, TomorrowNext, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tenorPeriod" type="Period">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A tenor expressed as a period type and multiplier (e.g. 1D, 1Y, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tenorName nsA:tenorName (1) (1)
tenorPeriod nsA:tenorPeriod (1) (1)
