Definition Type: Group
Name: Payer.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-9.xsd

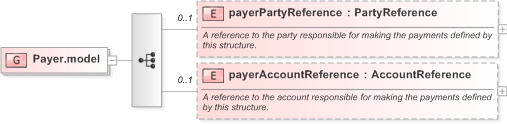

Collapse XSD Schema Diagram:
Drilldown into payerAccountReference in schema fpml-shared-5-9_xsd Drilldown into payerPartyReference in schema fpml-shared-5-9_xsdXSD Diagram of Payer.model in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:group name="Payer.model">
    <xsd:sequence>
        <xsd:element name="payerPartyReference" type="PartyReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A reference to the party responsible for making the payments defined by this structure.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="payerAccountReference" type="AccountReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A reference to the account responsible for making the payments defined by this structure.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsA:payerPartyReference 0 (1)
payerAccountReference nsA:payerAccountReference 0 (1)
