Definition Type: ComplexType
Name: ReferencePoolItem
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-cd-5-9.xsd
Abstract
Documentation:
This type contains all the constituent weight and reference information.

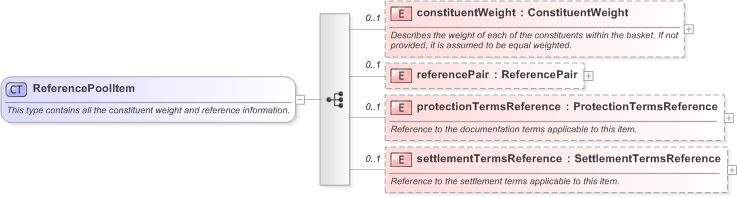

Collapse XSD Schema Diagram:
Drilldown into settlementTermsReference in schema fpml-cd-5-9_xsd Drilldown into protectionTermsReference in schema fpml-cd-5-9_xsd Drilldown into referencePair in schema fpml-cd-5-9_xsd Drilldown into constituentWeight in schema fpml-cd-5-9_xsdXSD Diagram of ReferencePoolItem in schema fpml-cd-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="ReferencePoolItem">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This type contains all the constituent weight and reference information.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="constituentWeight" type="ConstituentWeight" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Describes the weight of each of the constituents within the basket. If not provided, it is assumed to be equal weighted.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="referencePair" type="ReferencePair" minOccurs="0" />
        <xsd:element name="protectionTermsReference" type="ProtectionTermsReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reference to the documentation terms applicable to this item.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="settlementTermsReference" type="SettlementTermsReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reference to the settlement terms applicable to this item.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
constituentWeight nsA:constituentWeight 0 (1)
referencePair nsA:referencePair 0 (1)
protectionTermsReference nsA:protectionTermsReference 0 (1)
settlementTermsReference nsA:settlementTermsReference 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:referencePoolItem
