Definition Type: ComplexType
Name: RelativePrice
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-repo-5-9.xsd
Abstract
Documentation:
A type which represents Pricing relative to a Benchmark.
Collapse XSD Schema Diagram:

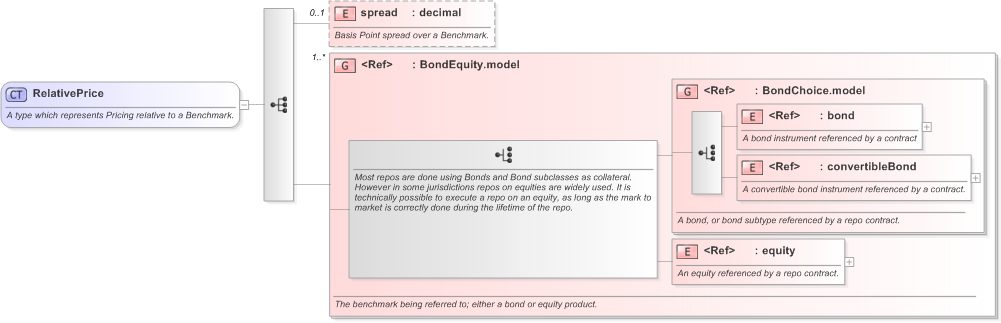

Drilldown into equity in schema fpml-asset-5-9_xsd Drilldown into convertibleBond in schema fpml-asset-5-9_xsd Drilldown into bond in schema fpml-asset-5-9_xsd Drilldown into BondChoice.model in schema fpml-asset-5-9_xsd Drilldown into BondEquity.model in schema fpml-repo-5-9_xsd Drilldown into spread in schema fpml-repo-5-9_xsdXSD Diagram of RelativePrice in schema fpml-repo-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:complexType name="RelativePrice">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type which represents Pricing relative to a Benchmark.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="spread" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Basis Point spread over a Benchmark.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="BondEquity.model" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The benchmark being referred to; either a bond or equity product.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
spread nsA:spread 0 (1)
bond nsA:bond (1) (1)
convertibleBond nsA:convertibleBond (1) (1)
equity nsA:equity (1) (1)
<xs:group> nsA:BondEquity.model (1) unbounded
<xs:group> nsA:BondChoice.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:relativePrice
