Definition Type: Element
Name: repo
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Repo
Containing Schema: fpml-repo-5-9.xsd
Abstract
Documentation:
Global element representing a Repo.

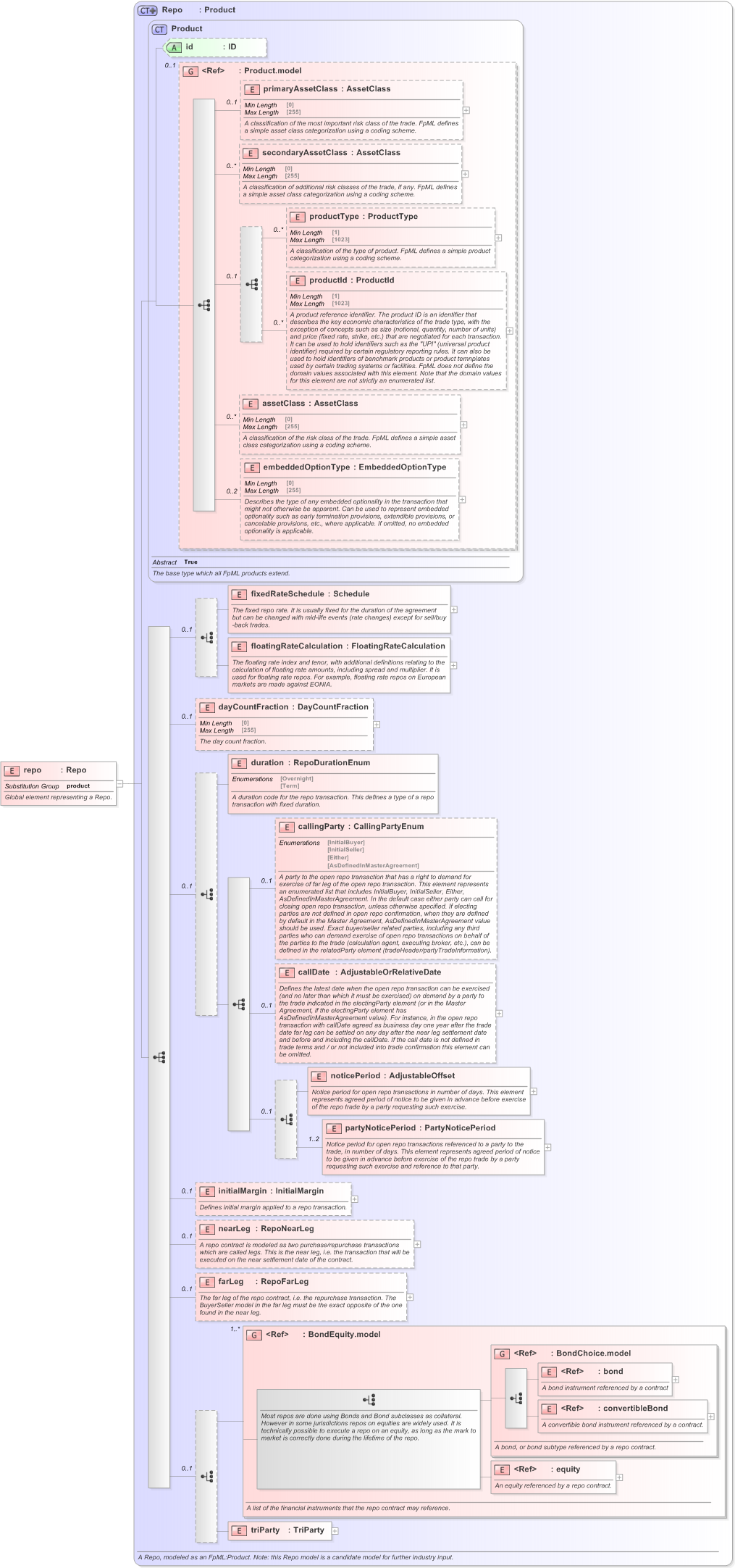

Collapse XSD Schema Diagram:
Drilldown into triParty in schema fpml-repo-5-9_xsd Drilldown into equity in schema fpml-asset-5-9_xsd Drilldown into convertibleBond in schema fpml-asset-5-9_xsd Drilldown into bond in schema fpml-asset-5-9_xsd Drilldown into BondChoice.model in schema fpml-asset-5-9_xsd Drilldown into BondEquity.model in schema fpml-repo-5-9_xsd Drilldown into farLeg in schema fpml-repo-5-9_xsd Drilldown into nearLeg in schema fpml-repo-5-9_xsd Drilldown into initialMargin in schema fpml-repo-5-9_xsd Drilldown into partyNoticePeriod in schema fpml-repo-5-9_xsd Drilldown into noticePeriod in schema fpml-repo-5-9_xsd Drilldown into callDate in schema fpml-repo-5-9_xsd Drilldown into callingParty in schema fpml-repo-5-9_xsd Drilldown into duration in schema fpml-repo-5-9_xsd Drilldown into dayCountFraction in schema fpml-repo-5-9_xsd Drilldown into floatingRateCalculation in schema fpml-repo-5-9_xsd Drilldown into fixedRateSchedule in schema fpml-repo-5-9_xsd Drilldown into embeddedOptionType in schema fpml-shared-5-9_xsd Drilldown into assetClass in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productType in schema fpml-shared-5-9_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into Product.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Product in schema fpml-shared-5-9_xsd Drilldown into Repo in schema fpml-repo-5-9_xsdXSD Diagram of repo in schema fpml-repo-5-9_xsd (Financial products Markup Language (FpML®) - Reporting)
Collapse XSD Schema Code:
<xsd:element name="repo" type="Repo" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Global element representing a Repo.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
embeddedOptionType nsA:embeddedOptionType 0 2
fixedRateSchedule nsA:fixedRateSchedule (1) (1)
floatingRateCalculation nsA:floatingRateCalculation (1) (1)
dayCountFraction nsA:dayCountFraction 0 (1)
duration nsA:duration (1) (1)
callingParty nsA:callingParty 0 (1)
callDate nsA:callDate 0 (1)
noticePeriod nsA:noticePeriod (1) (1)
partyNoticePeriod nsA:partyNoticePeriod (1) 2
initialMargin nsA:initialMargin 0 (1)
nearLeg nsA:nearLeg 0 (1)
farLeg nsA:farLeg 0 (1)
bond nsA:bond (1) (1)
convertibleBond nsA:convertibleBond (1) (1)
equity nsA:equity (1) (1)
triParty nsA:triParty (1) (1)
<xs:group> nsA:BondEquity.model (1) unbounded
<xs:group> nsA:BondChoice.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
