Definition Type: ComplexType
Name: AveragePriceLeg
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:CommoditySwapLeg
Containing Schema: fpml-com-5-9.xsd
Abstract
Documentation:
The average price leg of an average price commodity bullion or non-precious metal forward transaction.

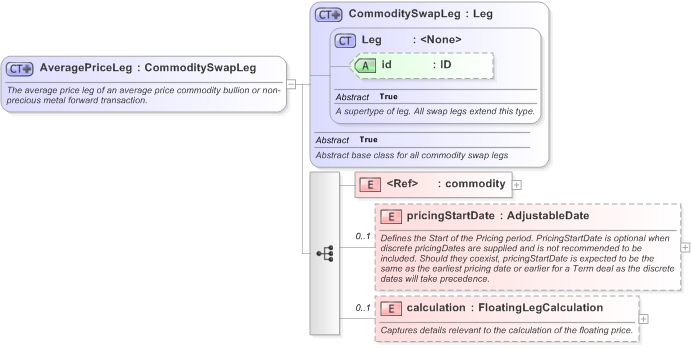

Collapse XSD Schema Diagram:
Drilldown into calculation in schema fpml-com-5-9_xsd Drilldown into pricingStartDate in schema fpml-com-5-9_xsd Drilldown into commodity in schema fpml-asset-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Leg in schema fpml-shared-5-9_xsd Drilldown into CommoditySwapLeg in schema fpml-com-5-9_xsdXSD Diagram of AveragePriceLeg in schema fpml-com-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="AveragePriceLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The average price leg of an average price commodity bullion or non-precious metal forward transaction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="CommoditySwapLeg">
            <xsd:sequence>
                <xsd:element ref="commodity" />
                <xsd:element name="pricingStartDate" type="AdjustableDate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the Start of the Pricing period. PricingStartDate is optional when discrete pricingDates are supplied and is not recommended to be included. Should they coexist, pricingStartDate is expected to be the same as the earliest pricing date or earlier for a Term deal as the discrete dates will take precedence.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="calculation" type="FloatingLegCalculation" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Captures details relevant to the calculation of the floating price.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commodity nsA:commodity (1) (1)
pricingStartDate nsA:pricingStartDate 0 (1)
calculation nsA:calculation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:averagePriceLeg
