Definition Type: ComplexType
Name: DividendLeg
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:DirectionalLegUnderlyer
Containing Schema: fpml-dividend-swaps-5-9.xsd
Abstract
Documentation:
Floating Payment Leg of a Dividend Swap.

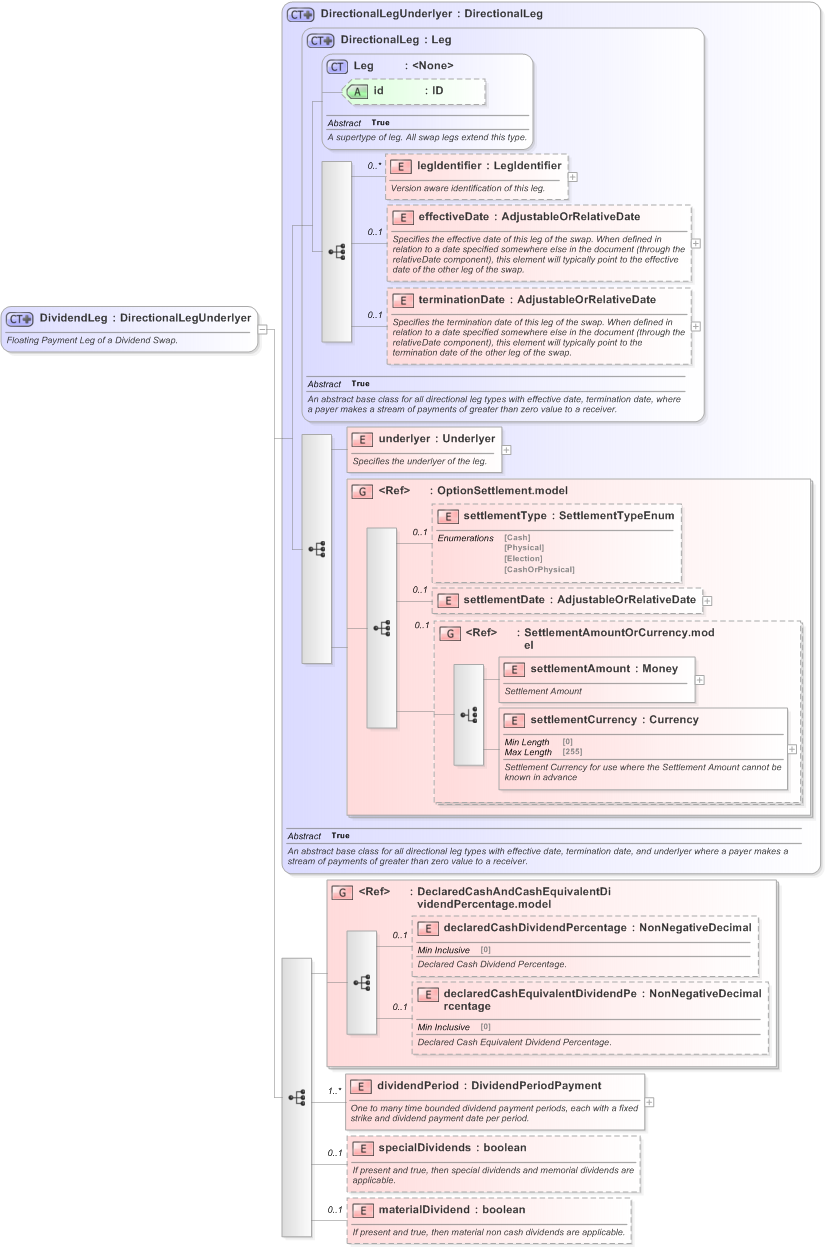

Collapse XSD Schema Diagram:
Drilldown into materialDividend in schema fpml-dividend-swaps-5-9_xsd Drilldown into specialDividends in schema fpml-dividend-swaps-5-9_xsd Drilldown into dividendPeriod in schema fpml-dividend-swaps-5-9_xsd Drilldown into declaredCashEquivalentDividendPercentage in schema fpml-eq-shared-5-9_xsd Drilldown into declaredCashDividendPercentage in schema fpml-eq-shared-5-9_xsd Drilldown into DeclaredCashAndCashEquivalentDividendPercentage.model in schema fpml-eq-shared-5-9_xsd Drilldown into settlementCurrency in schema fpml-shared-5-9_xsd Drilldown into settlementAmount in schema fpml-shared-5-9_xsd Drilldown into SettlementAmountOrCurrency.model in schema fpml-shared-5-9_xsd Drilldown into settlementDate in schema fpml-option-shared-5-9_xsd Drilldown into settlementType in schema fpml-option-shared-5-9_xsd Drilldown into OptionSettlement.model in schema fpml-option-shared-5-9_xsd Drilldown into underlyer in schema fpml-eq-shared-5-9_xsd Drilldown into terminationDate in schema fpml-shared-5-9_xsd Drilldown into effectiveDate in schema fpml-shared-5-9_xsd Drilldown into legIdentifier in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Leg in schema fpml-shared-5-9_xsd Drilldown into DirectionalLeg in schema fpml-shared-5-9_xsd Drilldown into DirectionalLegUnderlyer in schema fpml-eq-shared-5-9_xsdXSD Diagram of DividendLeg in schema fpml-dividend-swaps-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="DividendLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Floating Payment Leg of a Dividend Swap.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="DirectionalLegUnderlyer">
            <xsd:sequence>
                <xsd:group ref="DeclaredCashAndCashEquivalentDividendPercentage.model" />
                <xsd:element name="dividendPeriod" type="DividendPeriodPayment" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">One to many time bounded dividend payment periods, each with a fixed strike and dividend payment date per period.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="specialDividends" type="xsd:boolean" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">If present and true, then special dividends and memorial dividends are applicable.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="materialDividend" type="xsd:boolean" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">If present and true, then material non cash dividends are applicable.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legIdentifier nsA:legIdentifier 0 unbounded
effectiveDate nsA:effectiveDate 0 (1)
terminationDate nsA:terminationDate 0 (1)
underlyer nsA:underlyer (1) (1)
settlementType nsA:settlementType 0 (1)
settlementDate nsA:settlementDate 0 (1)
settlementAmount nsA:settlementAmount (1) (1)
settlementCurrency nsA:settlementCurrency (1) (1)
declaredCashDividendPercentage nsA:declaredCashDividendPercentage 0 (1)
declaredCashEquivalentDividendPercentage nsA:declaredCashEquivalentDividendPercentage 0 (1)
dividendPeriod nsA:dividendPeriod (1) unbounded
specialDividends nsA:specialDividends 0 (1)
materialDividend nsA:materialDividend 0 (1)
<xs:group> nsA:OptionSettlement.model (1) (1)
<xs:group> nsA:SettlementAmountOrCurrency.model 0 (1)
<xs:group> nsA:DeclaredCashAndCashEquivalentDividendPercentage.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:dividendLeg
