Documentation for Financial products Markup Language (FpML®) - Transparency
Definition Type: ComplexType
Name: EquityOptionTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:EquityDerivativeShortFormBase
Containing Schema: fpml-eqd-5-9.xsd
Abstract
Documentation:
A type for defining equity option transaction supplements.

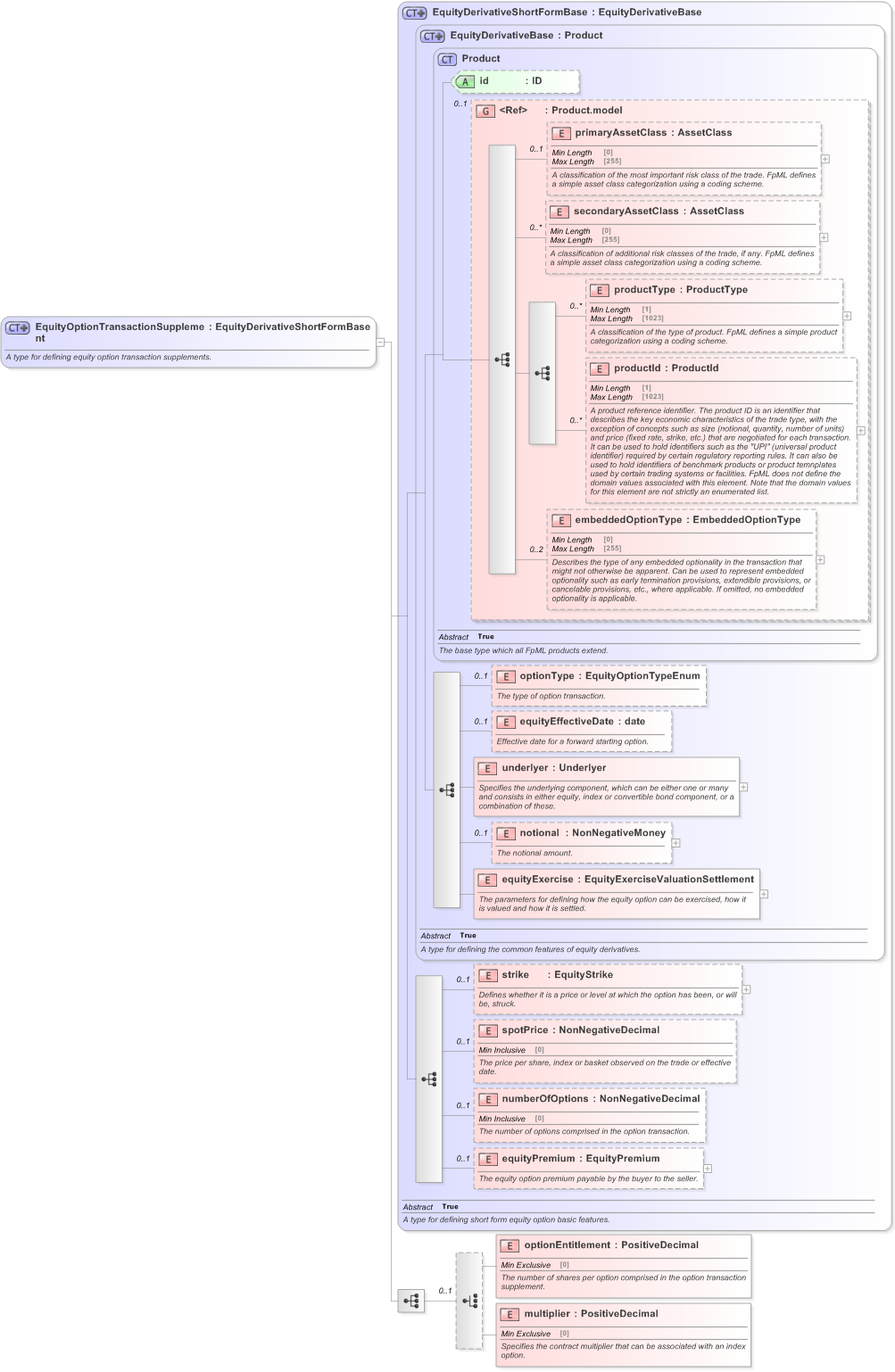

Collapse XSD Schema Diagram:
Drilldown into multiplier in schema fpml-eqd-5-9_xsd Drilldown into optionEntitlement in schema fpml-eqd-5-9_xsd Drilldown into equityPremium in schema fpml-eqd-5-9_xsd Drilldown into numberOfOptions in schema fpml-eqd-5-9_xsd Drilldown into spotPrice in schema fpml-eqd-5-9_xsd Drilldown into strike in schema fpml-eqd-5-9_xsd Drilldown into equityExercise in schema fpml-eqd-5-9_xsd Drilldown into notional in schema fpml-eqd-5-9_xsd Drilldown into underlyer in schema fpml-eqd-5-9_xsd Drilldown into equityEffectiveDate in schema fpml-eqd-5-9_xsd Drilldown into optionType in schema fpml-eqd-5-9_xsd Drilldown into embeddedOptionType in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productType in schema fpml-shared-5-9_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into Product.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Product in schema fpml-shared-5-9_xsd Drilldown into EquityDerivativeBase in schema fpml-eqd-5-9_xsd Drilldown into EquityDerivativeShortFormBase in schema fpml-eqd-5-9_xsdXSD Diagram of EquityOptionTransactionSupplement in schema fpml-eqd-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="EquityOptionTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining equity option transaction supplements.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="EquityDerivativeShortFormBase">
            <xsd:sequence>
                <xsd:choice minOccurs="0">
                    <xsd:element name="optionEntitlement" type="PositiveDecimal">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The number of shares per option comprised in the option transaction supplement.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="multiplier" type="PositiveDecimal">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Specifies the contract multiplier that can be associated with an index option.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:choice>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
embeddedOptionType nsA:embeddedOptionType 0 2
optionType nsA:optionType 0 (1)
equityEffectiveDate nsA:equityEffectiveDate 0 (1)
underlyer nsA:underlyer (1) (1)
notional nsA:notional 0 (1)
equityExercise nsA:equityExercise (1) (1)
strike nsA:strike 0 (1)
spotPrice nsA:spotPrice 0 (1)
numberOfOptions nsA:numberOfOptions 0 (1)
equityPremium nsA:equityPremium 0 (1)
optionEntitlement nsA:optionEntitlement (1) (1)
multiplier nsA:multiplier (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:equityOptionTransactionSupplement
