Documentation for Financial products Markup Language (FpML®) - Transparency
Definition Type: Element
Name: equitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:EquitySwapTransactionSupplement
Containing Schema: fpml-return-swaps-5-9.xsd
Abstract
Documentation:
Specifies the structure of the equity swap transaction supplement.

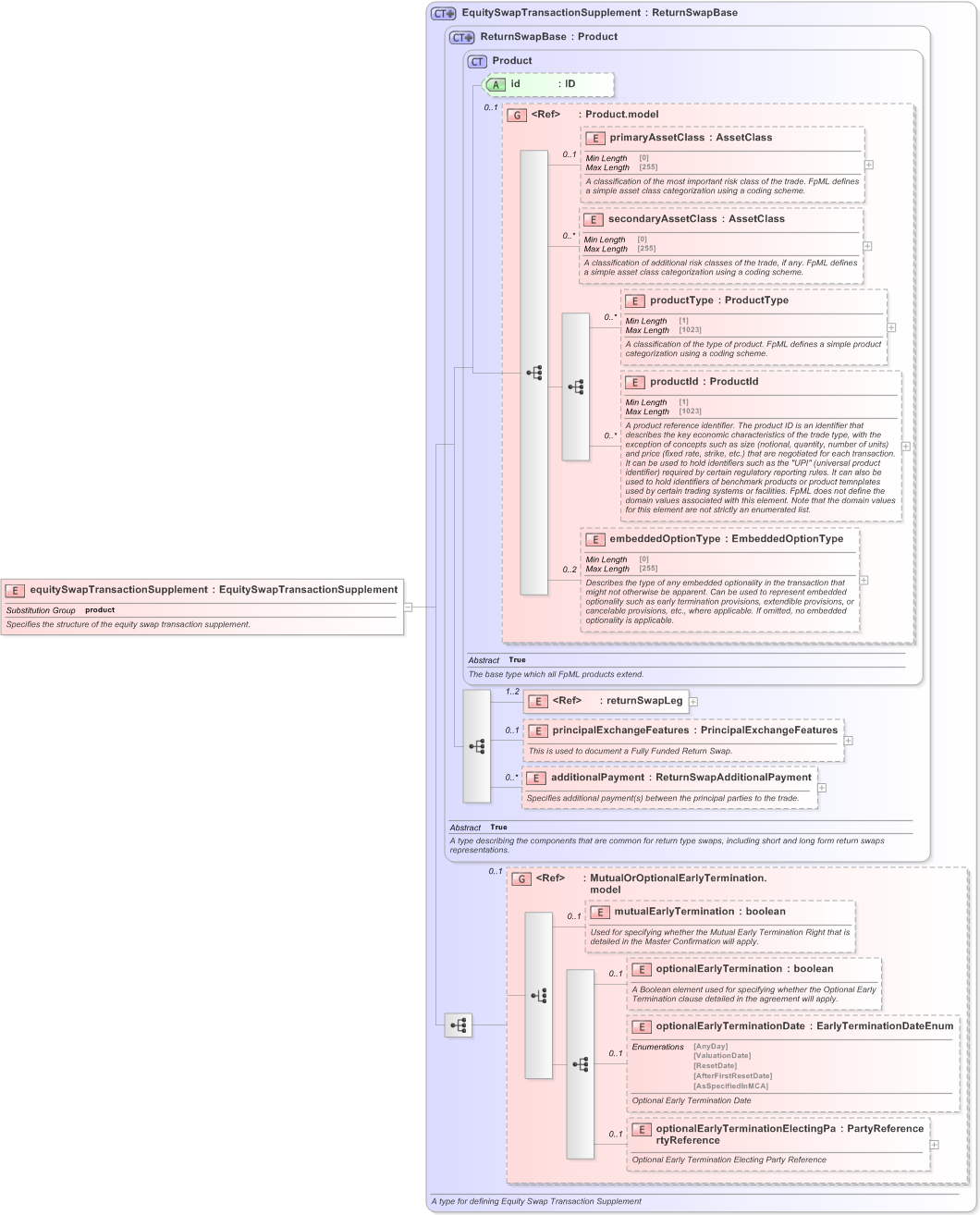

Collapse XSD Schema Diagram:
Drilldown into optionalEarlyTerminationElectingPartyReference in schema fpml-eq-shared-5-9_xsd Drilldown into optionalEarlyTerminationDate in schema fpml-eq-shared-5-9_xsd Drilldown into optionalEarlyTermination in schema fpml-eq-shared-5-9_xsd Drilldown into mutualEarlyTermination in schema fpml-eq-shared-5-9_xsd Drilldown into MutualOrOptionalEarlyTermination.model in schema fpml-eq-shared-5-9_xsd Drilldown into additionalPayment in schema fpml-eq-shared-5-9_xsd Drilldown into principalExchangeFeatures in schema fpml-eq-shared-5-9_xsd Drilldown into returnSwapLeg in schema fpml-eq-shared-5-9_xsd Drilldown into embeddedOptionType in schema fpml-shared-5-9_xsd Drilldown into productId in schema fpml-shared-5-9_xsd Drilldown into productType in schema fpml-shared-5-9_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-9_xsd Drilldown into Product.model in schema fpml-shared-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Product in schema fpml-shared-5-9_xsd Drilldown into ReturnSwapBase in schema fpml-eq-shared-5-9_xsd Drilldown into EquitySwapTransactionSupplement in schema fpml-return-swaps-5-9_xsdXSD Diagram of equitySwapTransactionSupplement in schema fpml-return-swaps-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:element name="equitySwapTransactionSupplement" type="EquitySwapTransactionSupplement" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the structure of the equity swap transaction supplement.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
embeddedOptionType nsA:embeddedOptionType 0 2
returnSwapLeg nsA:returnSwapLeg (1) 2
principalExchangeFeatures nsA:principalExchangeFeatures 0 (1)
additionalPayment nsA:additionalPayment 0 unbounded
mutualEarlyTermination nsA:mutualEarlyTermination 0 (1)
optionalEarlyTermination nsA:optionalEarlyTermination 0 (1)
optionalEarlyTerminationDate nsA:optionalEarlyTerminationDate 0 (1)
optionalEarlyTerminationElectingPartyReference nsA:optionalEarlyTerminationElectingPartyReference 0 (1)
<xs:group> nsA:MutualOrOptionalEarlyTermination.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
Collapse Comments:
