Documentation for Financial products Markup Language (FpML®) - Transparency
Definition Type: Element
Name: exerciseFeeSchedule
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:ExerciseFeeSchedule
Containing Schema: fpml-shared-5-9.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The fees associated with an exercise date. The fees are conditional on the exercise occuring. The fees can be specified as actual currency amounts or as percentages of the notional amount being exercised.

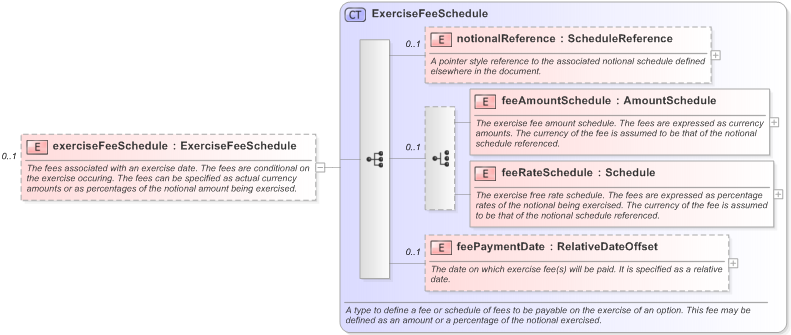

Collapse XSD Schema Diagram:
Drilldown into feePaymentDate in schema fpml-shared-5-9_xsd Drilldown into feeRateSchedule in schema fpml-shared-5-9_xsd Drilldown into feeAmountSchedule in schema fpml-shared-5-9_xsd Drilldown into notionalReference in schema fpml-shared-5-9_xsd Drilldown into ExerciseFeeSchedule in schema fpml-shared-5-9_xsdXSD Diagram of exerciseFeeSchedule in schema fpml-shared-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:element name="exerciseFeeSchedule" type="ExerciseFeeSchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The fees associated with an exercise date. The fees are conditional on the exercise occuring. The fees can be specified as actual currency amounts or as percentages of the notional amount being exercised.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalReference nsA:notionalReference 0 (1)
feeAmountSchedule nsA:feeAmountSchedule (1) (1)
feeRateSchedule nsA:feeRateSchedule (1) (1)
feePaymentDate nsA:feePaymentDate 0 (1)
Collapse Derivation Tree:
Collapse Comments:
