Definition Type: ComplexType
Name: FixedPriceLeg
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:FinancialSwapLeg
Containing Schema: fpml-com-5-9.xsd
Abstract
Documentation:
Fixed Price Leg of a Commodity Swap. It defines schedule of fixed payments associated with a commodity swap.

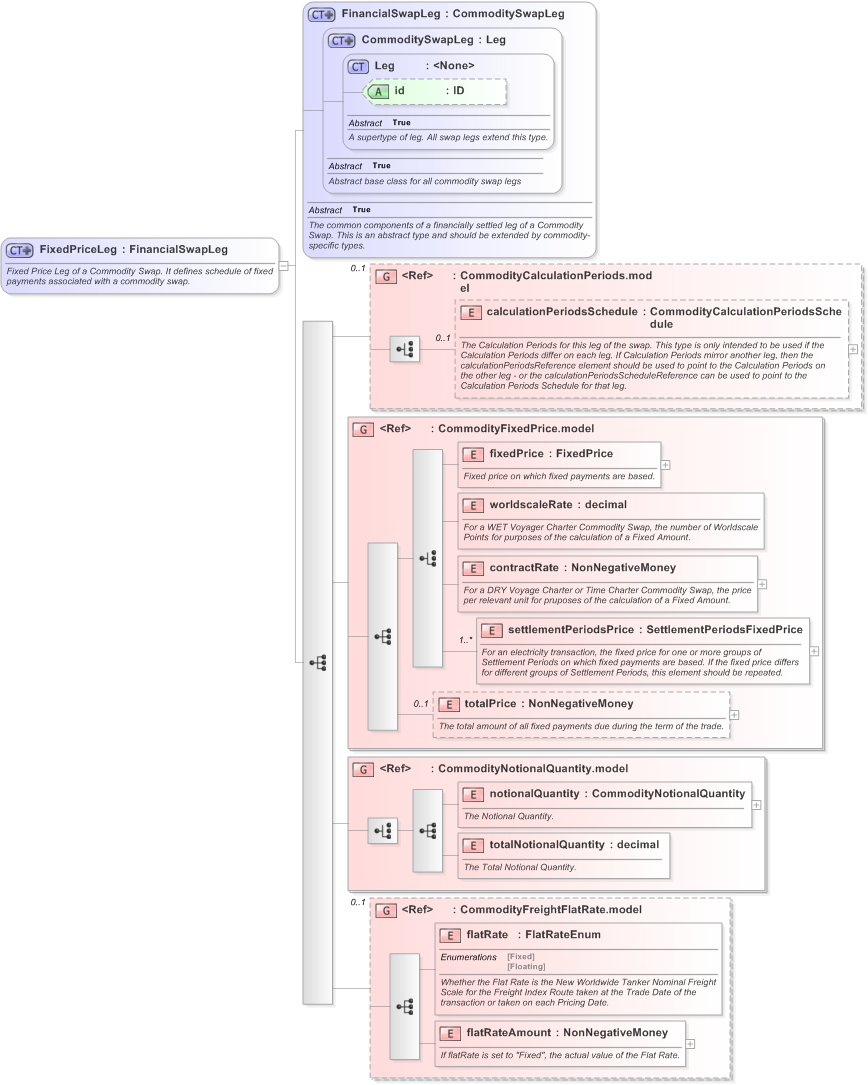

Collapse XSD Schema Diagram:
Drilldown into flatRateAmount in schema fpml-com-5-9_xsd Drilldown into flatRate in schema fpml-com-5-9_xsd Drilldown into CommodityFreightFlatRate.model in schema fpml-com-5-9_xsd Drilldown into totalNotionalQuantity in schema fpml-com-5-9_xsd Drilldown into notionalQuantity in schema fpml-com-5-9_xsd Drilldown into CommodityNotionalQuantity.model in schema fpml-com-5-9_xsd Drilldown into totalPrice in schema fpml-com-5-9_xsd Drilldown into settlementPeriodsPrice in schema fpml-com-5-9_xsd Drilldown into contractRate in schema fpml-com-5-9_xsd Drilldown into worldscaleRate in schema fpml-com-5-9_xsd Drilldown into fixedPrice in schema fpml-com-5-9_xsd Drilldown into CommodityFixedPrice.model in schema fpml-com-5-9_xsd Drilldown into calculationPeriodsSchedule in schema fpml-com-5-9_xsd Drilldown into CommodityCalculationPeriods.model in schema fpml-com-5-9_xsd Drilldown into id in schema fpml-shared-5-9_xsd Drilldown into Leg in schema fpml-shared-5-9_xsd Drilldown into CommoditySwapLeg in schema fpml-com-5-9_xsd Drilldown into FinancialSwapLeg in schema fpml-com-5-9_xsdXSD Diagram of FixedPriceLeg in schema fpml-com-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="FixedPriceLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Fixed Price Leg of a Commodity Swap. It defines schedule of fixed payments associated with a commodity swap.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FinancialSwapLeg">
            <xsd:sequence>
                <xsd:group ref="CommodityCalculationPeriods.model" minOccurs="0">
                </xsd:group>
                <xsd:group ref="CommodityFixedPrice.model" />
                <xsd:group ref="CommodityNotionalQuantity.model" />
                <xsd:group ref="CommodityFreightFlatRate.model" minOccurs="0">
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
calculationPeriodsSchedule nsA:calculationPeriodsSchedule 0 (1)
fixedPrice nsA:fixedPrice (1) (1)
worldscaleRate nsA:worldscaleRate (1) (1)
contractRate nsA:contractRate (1) (1)
settlementPeriodsPrice nsA:settlementPeriodsPrice (1) unbounded
totalPrice nsA:totalPrice 0 (1)
notionalQuantity nsA:notionalQuantity (1) (1)
totalNotionalQuantity nsA:totalNotionalQuantity (1) (1)
flatRate nsA:flatRate (1) (1)
flatRateAmount nsA:flatRateAmount (1) (1)
<xs:group> nsA:CommodityCalculationPeriods.model 0 (1)
<xs:group> nsA:CommodityFixedPrice.model (1) (1)
<xs:group> nsA:CommodityNotionalQuantity.model (1) (1)
<xs:group> nsA:CommodityFreightFlatRate.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:fixedLeg
