Definition Type: ComplexType
Name: ReportingRegime
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-doc-5-9.xsd
Abstract
Documentation:
Provides information about how the information in this message is applicable to a regulatory reporting process.

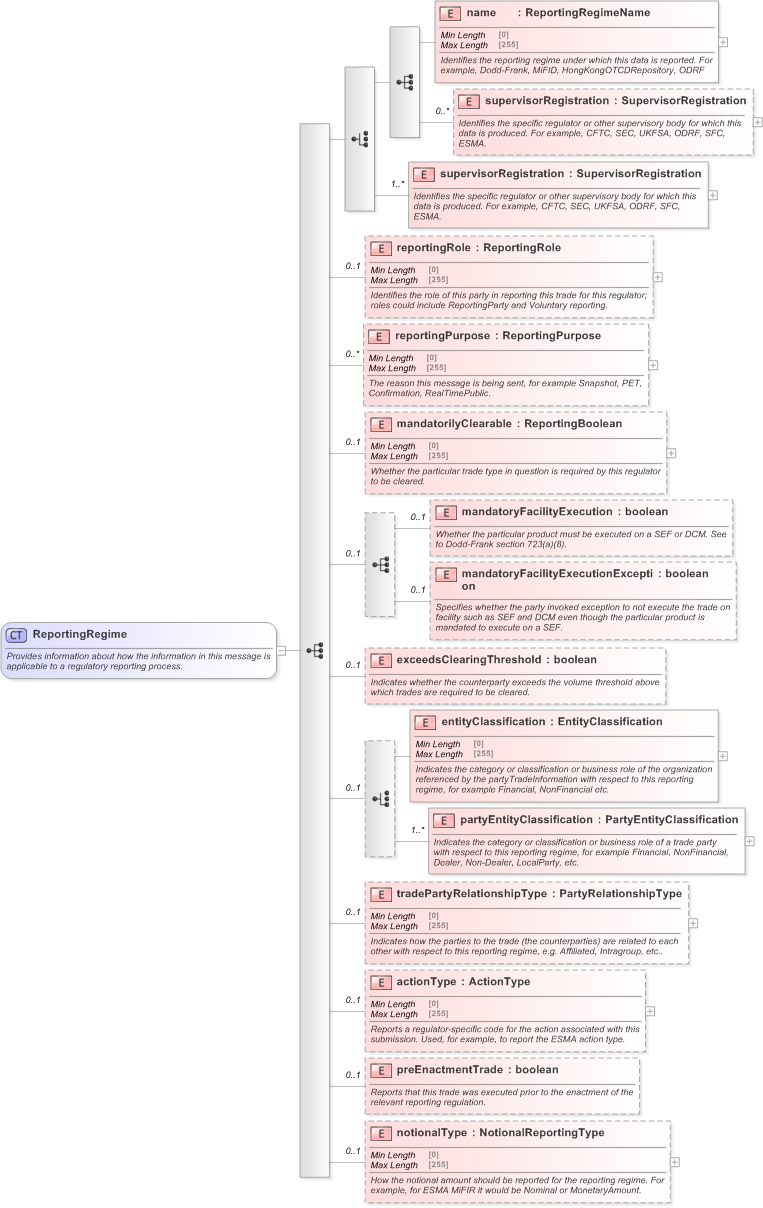

Collapse XSD Schema Diagram:
Drilldown into notionalType in schema fpml-doc-5-9_xsd Drilldown into preEnactmentTrade in schema fpml-doc-5-9_xsd Drilldown into actionType in schema fpml-doc-5-9_xsd Drilldown into tradePartyRelationshipType in schema fpml-doc-5-9_xsd Drilldown into partyEntityClassification in schema fpml-doc-5-9_xsd Drilldown into entityClassification in schema fpml-doc-5-9_xsd Drilldown into exceedsClearingThreshold in schema fpml-doc-5-9_xsd Drilldown into mandatoryFacilityExecutionException in schema fpml-doc-5-9_xsd Drilldown into mandatoryFacilityExecution in schema fpml-doc-5-9_xsd Drilldown into mandatorilyClearable in schema fpml-doc-5-9_xsd Drilldown into reportingPurpose in schema fpml-doc-5-9_xsd Drilldown into reportingRole in schema fpml-doc-5-9_xsd Drilldown into supervisorRegistration in schema fpml-doc-5-9_xsd Drilldown into supervisorRegistration in schema fpml-doc-5-9_xsd Drilldown into name in schema fpml-doc-5-9_xsdXSD Diagram of ReportingRegime in schema fpml-doc-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:complexType name="ReportingRegime">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Provides information about how the information in this message is applicable to a regulatory reporting process.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice>
            <xsd:sequence>
                <xsd:element name="name" type="ReportingRegimeName">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Identifies the reporting regime under which this data is reported. For example, Dodd-Frank, MiFID, HongKongOTCDRepository, ODRF</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="supervisorRegistration" type="SupervisorRegistration" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element name="supervisorRegistration" type="SupervisorRegistration" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Identifies the specific regulator or other supervisory body for which this data is produced. For example, CFTC, SEC, UKFSA, ODRF, SFC, ESMA.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="reportingRole" type="ReportingRole" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Identifies the role of this party in reporting this trade for this regulator; roles could include ReportingParty and Voluntary reporting.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="reportingPurpose" type="ReportingPurpose" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The reason this message is being sent, for example Snapshot, PET, Confirmation, RealTimePublic.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="mandatorilyClearable" type="ReportingBoolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Whether the particular trade type in question is required by this regulator to be cleared.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:sequence minOccurs="0">
            <xsd:element name="mandatoryFacilityExecution" type="xsd:boolean" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Whether the particular product must be executed on a SEF or DCM. See to Dodd-Frank section 723(a)(8).</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="mandatoryFacilityExecutionException" type="xsd:boolean" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Specifies whether the party invoked exception to not execute the trade on facility such as SEF and DCM even though the particular product is mandated to execute on a SEF.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
        <xsd:element name="exceedsClearingThreshold" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates whether the counterparty exceeds the volume threshold above which trades are required to be cleared.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0">
            <xsd:element name="entityClassification" type="EntityClassification">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Indicates the category or classification or business role of the organization referenced by the partyTradeInformation with respect to this reporting regime, for example Financial, NonFinancial etc.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="partyEntityClassification" type="PartyEntityClassification" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Indicates the category or classification or business role of a trade party with respect to this reporting regime, for example Financial, NonFinancial, Dealer, Non-Dealer, LocalParty, etc.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="tradePartyRelationshipType" type="PartyRelationshipType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates how the parties to the trade (the counterparties) are related to each other with respect to this reporting regime, e.g. Affiliated, Intragroup, etc..</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="actionType" type="ActionType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reports a regulator-specific code for the action associated with this submission. Used, for example, to report the ESMA action type.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="preEnactmentTrade" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reports that this trade was executed prior to the enactment of the relevant reporting regulation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notionalType" type="NotionalReportingType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">How the notional amount should be reported for the reporting regime. For example, for ESMA MiFIR it would be Nominal or MonetaryAmount.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
supervisorRegistration nsA:supervisorRegistration 0 unbounded
supervisorRegistration nsA:supervisorRegistration (1) unbounded
reportingRole nsA:reportingRole 0 (1)
reportingPurpose nsA:reportingPurpose 0 unbounded
mandatorilyClearable nsA:mandatorilyClearable 0 (1)
mandatoryFacilityExecution nsA:mandatoryFacilityExecution 0 (1)
mandatoryFacilityExecutionException nsA:mandatoryFacilityExecutionException 0 (1)
exceedsClearingThreshold nsA:exceedsClearingThreshold 0 (1)
entityClassification nsA:entityClassification (1) (1)
partyEntityClassification nsA:partyEntityClassification (1) unbounded
tradePartyRelationshipType nsA:tradePartyRelationshipType 0 (1)
actionType nsA:actionType 0 (1)
preEnactmentTrade nsA:preEnactmentTrade 0 (1)
notionalType nsA:notionalType 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:reportingRegime, nsA:reportingRegime
