Definition Type: Element
Name: settlementProvision
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsA:SettlementProvision
Containing Schema: fpml-ird-5-9.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A provision that allows the specification of settlement terms, occuring when the settlement currency is different to the notional currency of the trade.

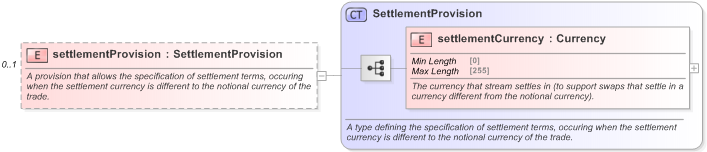

Collapse XSD Schema Diagram:
Drilldown into settlementCurrency in schema fpml-ird-5-9_xsd Drilldown into SettlementProvision in schema fpml-ird-5-9_xsdXSD Diagram of settlementProvision in schema fpml-ird-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:element name="settlementProvision" type="SettlementProvision" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A provision that allows the specification of settlement terms, occuring when the settlement currency is different to the notional currency of the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementCurrency nsA:settlementCurrency (1) (1)
Collapse Derivation Tree:
