Definition Type: Group
Name: SupervisorRegistration.model
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-doc-5-9.xsd
Documentation:
Provides information about a regulator or other supervisory body that an organization is registered with.

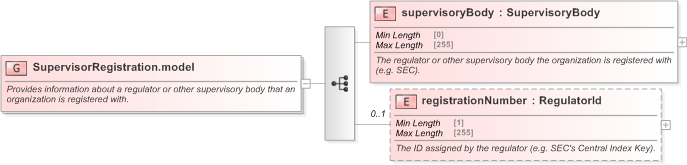

Collapse XSD Schema Diagram:
Drilldown into registrationNumber in schema fpml-doc-5-9_xsd Drilldown into supervisoryBody in schema fpml-doc-5-9_xsdXSD Diagram of SupervisorRegistration.model in schema fpml-doc-5-9_xsd (Financial products Markup Language (FpML®) - Transparency)
Collapse XSD Schema Code:
<xsd:group name="SupervisorRegistration.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Provides information about a regulator or other supervisory body that an organization is registered with.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="supervisoryBody" type="SupervisoryBody">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The regulator or other supervisory body the organization is registered with (e.g. SEC).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="registrationNumber" type="RegulatorId" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The ID assigned by the regulator (e.g. SEC's Central Index Key).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
supervisoryBody nsA:supervisoryBody (1) (1)
registrationNumber nsA:registrationNumber 0 (1)
