Definition Type: ComplexType
Name: CartesianCSType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateSystemType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
A 1-, 2-, or 3-dimensional coordinate system. Gives the position of points relative to orthogonal straight axes in the 2- and 3-dimensional cases. In the 1-dimensional case, it contains a single straight coordinate axis. In the multi-dimensional case, all axes shall have the same length unit of measure.

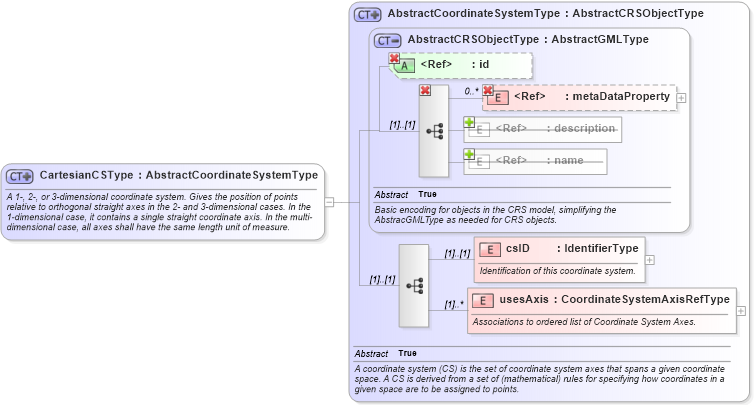

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema coordinatesystems_xsd Drilldown into csID in schema coordinatesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCRSObjectType in schema referencesystems_xsd Drilldown into AbstractCoordinateSystemType in schema coordinatesystems_xsdXSD Diagram of CartesianCSType in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="CartesianCSType" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <xsd:annotation>
        <xsd:documentation>A 1-, 2-, or 3-dimensional coordinate system. Gives the position of points relative to orthogonal straight axes in the 2- and 3-dimensional cases. In the 1-dimensional case, it contains a single straight coordinate axis. In the multi-dimensional case, all axes shall have the same length unit of measure. </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="gml:AbstractCoordinateSystemType" />
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
csID gml:csID (1) (1)
usesAxis gml:usesAxis (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:CartesianCS
