Documentation for Geography Markup Language
Definition Type: ComplexType
Name: DatumRefType
Namespace: http://www.opengis.net/gml
Containing Schema: datums.xsd
Abstract
Documentation:
Association to a Datum, either referencing or containing the definition of that Datum.

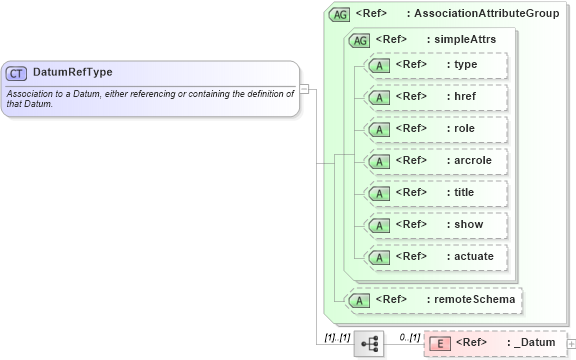

Collapse XSD Schema Diagram:
Drilldown into _Datum in schema datums_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of DatumRefType in schema datums_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="DatumRefType" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <xsd:annotation>
        <xsd:documentation>Association to a Datum, either referencing or containing the definition of that Datum. </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="gml:_Datum" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="gml:AssociationAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_Datum gml:_Datum 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:datumRefgml:EngineeringDatumRefType, gml:GeodeticDatumRefType, gml:ImageDatumRefType, gml:TemporalDatumRefType, gml:VerticalDatumRefType,
