Documentation for Geography Markup Language
Definition Type: ComplexType
Name: GeneralOperationMethodRefType
Namespace: http://www.opengis.net/gml
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
Association to an abstract Operation Method, either referencing or containing the definition of that Operation Method.

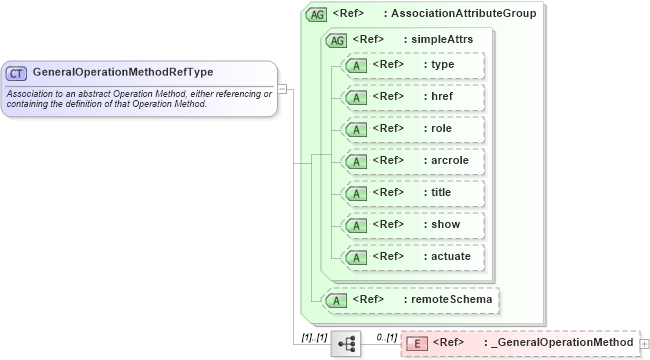

Collapse XSD Schema Diagram:
Drilldown into _GeneralOperationMethod in schema coordinateoperations_xsd Drilldown into remoteSchema in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of GeneralOperationMethodRefType in schema coordinateoperations_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GeneralOperationMethodRefType">
    <annotation>
        <documentation>Association to an abstract Operation Method, either referencing or containing the definition of that Operation Method. </documentation>
    </annotation>
    <sequence>
        <element ref="gml:_GeneralOperationMethod" minOccurs="0" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_GeneralOperationMethod gml:_GeneralOperationMethod 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
Collapse References:
gml:generalOperationMethodRefgml:OperationMethodRefType,
