Documentation for Geography Markup Language
Definition Type: ComplexType
Name: UserDefinedCSType
Namespace: http://www.opengis.net/gml
Type: gml:AbstractCoordinateSystemType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
A two- or three-dimensional coordinate system that consists of any combination of coordinate axes not covered by any other Coordinate System type. An example is a multilinear coordinate system which contains one coordinate axis that may have any 1-D shape which has no intersections with itself. This non-straight axis is supplemented by one or two straight axes to complete a 2 or 3 dimensional coordinate system. The non-straight axis is typically incrementally straight or curved.

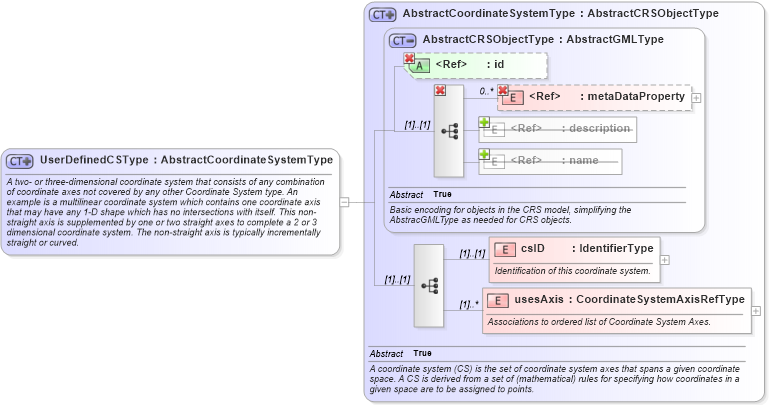

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema coordinatesystems_xsd Drilldown into csID in schema coordinatesystems_xsd Drilldown into name in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractCRSObjectType in schema referencesystems_xsd Drilldown into AbstractCoordinateSystemType in schema coordinatesystems_xsdXSD Diagram of UserDefinedCSType in schema coordinatesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="UserDefinedCSType" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <xsd:annotation>
        <xsd:documentation>A two- or three-dimensional coordinate system that consists of any combination of coordinate axes not covered by any other Coordinate System type. An example is a multilinear coordinate system which contains one coordinate axis that may have any 1-D shape which has no intersections with itself. This non-straight axis is supplemented by one or two straight axes to complete a 2 or 3 dimensional coordinate system. The non-straight axis is typically incrementally straight or curved. </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="gml:AbstractCoordinateSystemType" />
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
csID gml:csID (1) (1)
usesAxis gml:usesAxis (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
gml:UserDefinedCS
